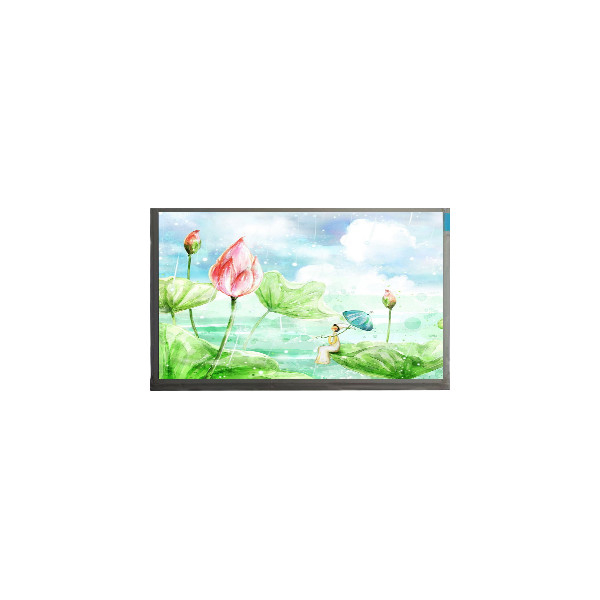

P080LDE-DF1 8.0 inch 1200*1920 45 pins LCD Screen Parts

Brand Name:	Innolux
Model Number:	P080LDE-DF1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

P080LDE-DF1

Diagonal Size:

Panel Type:

A-Si TFT-LCD, Assembly

Resolution:

1200(RGB)×1920, WUXGA 283PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

107.64(W)×172.224(H) Mm

Designed For:

Pad & Tablet

Touchscreen:

PCAP, I²C

Supply Ability:

100000 Unit/Units per Month

Product Description

P080LDE-DF1 8.0 inch 1200*1920 45 pins LCD Screen Parts

P080LDE-DF1 LCD Panel Product details :

Brand	Innolux
Model P/N	P080LDE-DF1
Diagonal Size	8.0"
Panel Type	a-Si TFT-LCD, Assembly
Resolution	1200(RGB)×1920, WUXGA 283PPI
Pixel Format	RGB Vertical Stripe
Active Area	107.64(W)×172.224(H) mm
Bezel Opening	-
Outline Size	119.44(W)×211.8(H)×4.55(D) mm
Surface	-
Brightness	380 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Display Mode	AAS, Normally Black, Transmissive
Best View on	Symmetry
Response Time	25 (Typ.)(Tr+Td)
Display Colors	16.7M 60%NTSC
Lamp Type	WLED, 15K hours, Without Driver
Frequency	60Hz
Touch Screen	PCAP, I²C
Panel Weight	90.0g (Max.)
Application	Pad & Tablet
Signal Interface	MIPI (4 data lanes), 45 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -10 ~ 60 °C ;Storage Temp.: -20 ~ 70 °C
