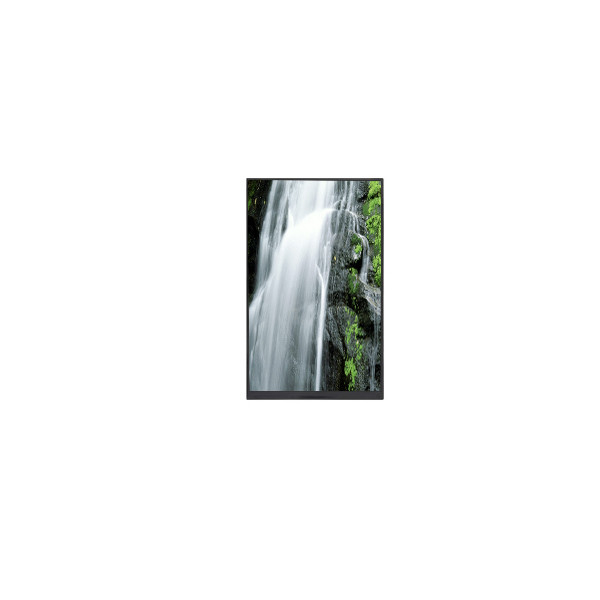

New 8.0 inch P080KDZ-3Z1 1200*1920 LCD Panel Screen Display

All Category

Floor Standing Digital Signage

New 8.0 inch P080KDZ-3Z1 1200*1920 LCD Panel Screen Display

Brand Name:	Innolux
Model Number:	P080KDZ-3Z1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

P080KDZ-3Z1

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL, FOB

Resolution:

1200(RGB)×1920, WUXGA 283PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

107.64(W)×172.224(H) Mm

Designed For:

Pad & Tablet

Touchscreen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

New 8.0 inch P080KDZ-3Z1 1200*1920 LCD Panel Screen Display

P080KDZ-3Z1 LCD Panel Product details :

Brand	Innolux
Model P/N	P080KDZ-3Z1
Diagonal Size	8.0"
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	1200(RGB)×1920, WUXGA 283PPI
Pixel Format	RGB Vertical Stripe
Active Area	107.64(W)×172.224(H) mm
Bezel Opening	-
Outline Dim.	112.64(W)×181.8(H)×1.07(D) mm
Treatment	Hard coating
Luminance	0 cd/m²
Contrast Ratio	800:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	25 (Typ.)(Tr+Td)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	IPS, Normally Black, Transmissive
Plate Thickness	0.40+0.40 mm
Transmittance	3.85% (Typ.)(with Polarizer)
Support Color	16.7M 60%NTSC
Light Source	No B/L, W/O Driver
Weight	TBD
Designed For	Pad & Tablet
Frame Rate	60Hz
Touch Panel	Without
D-IC Detail	COG Built-in 2 source chips
Interface Type	MIPI (4 data lanes), 40 pinsConnector
Power Supply	3.3/10.0/21.0/-7.0V (Typ.)(VDD/AVDD/VGH/VGL)
Environment	Operating Temperature: -10 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
New 8.0 inch P080KDZ-3Z1 1200*1920 LCD Panel Screen Display

P080KDZ-3Z1 LCD Panel Payment Instructions :

Accepted Payment Methods:

We prioritize the safety and convenience of our customers by accepting payments through Escrow, which allows you to pay securely online using your Credit Card.

Payment Timeline:

To ensure the timely processing and shipping of your order, please make your payment within 3 days of placing the order. Prompt payment is appreciated and helps us maintain efficient service. If you encounter any issues or delays with your payment, please don't hesitate to contact us immediately. We are here to assist you and resolve any problems to ensure a smooth transaction.

P080KDZ-3Z1 LCD Panel Shipping and Package :

P080KDZ-3Z1 LCD Panel Shipment Information :

Shipping Address:

We will ship your order to the address provided at the time of payment. Please ensure the address you entered is correct and up-to-date to avoid any delivery issues.

Estimated Delivery Time:

Typically, your order will arrive within 15-35 days. For orders shipped to Brazil, the estimated delivery time is 20-40 days. Some countries or regions may experience longer shipping times.

Delayed Shipments:

If your parcel has not arrived within the expected timeframe, please contact us first before taking any further action. We are here to assist you and will work to provide a satisfactory resolution.

Dispute Policy:

Please refrain from opening a dispute within the first 60 days after placing your order. If your order has not arrived after 60 days, you may contact us to request a refund or a resend of the product.

Customs Duty and Import Tax:

We are not responsible for any customs duties or import taxes that may be applicable in your country. Please check your local customs regulations for more information.

Important Instructions for Receiving and Handling Your P080KDZ-3Z1 LCD Panel :

Inspecting the Package Upon Arrival:

When you receive the package, carefully inspect its condition.

If you notice any obvious damage, dents, or deformities, prepare to record a video as you open the package. This evidence is crucial for any potential claims.

Reporting Damaged Goods:

If you find that the LCD panel is damaged, immediately take detailed images and videos showing the damage.

Send these visuals to us to document the issue.

Our team will handle shipping-related damages but not those caused during installation. To secure your rights, provide the requested evidence and initiate a dispute for a refund if necessary.

Testing Before Installation:

After confirming the screen is undamaged, thoroughly test its functionality before proceeding with installation.

Do not attempt to install the screen yourself unless you are a professional. We recommend that installation be carried out by qualified technical personnel. We are not responsible for damages resulting from unprofessional installation.

Product Authenticity and Labels:

Each product from our store includes a unique anti-tear label.

Do not remove this label, as it verifies the product's authenticity and origin from our store.

Documenting Product Issues:

If you encounter any issues with the product, ensure that your video proof includes the labels as evidence.

Following these guidelines will help ensure a smooth process and protect your purchase rights. Thank you for your cooperation.

P080KDZ-3Z1 LCD Panel FAQ :

Q: Can You declare my order of P080KDZ-3Z1 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can I pay my order of P080KDZ-3Z1 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of P080KDZ-3Z1?

A: Of course!If you make a large order, we will give you a discount.
