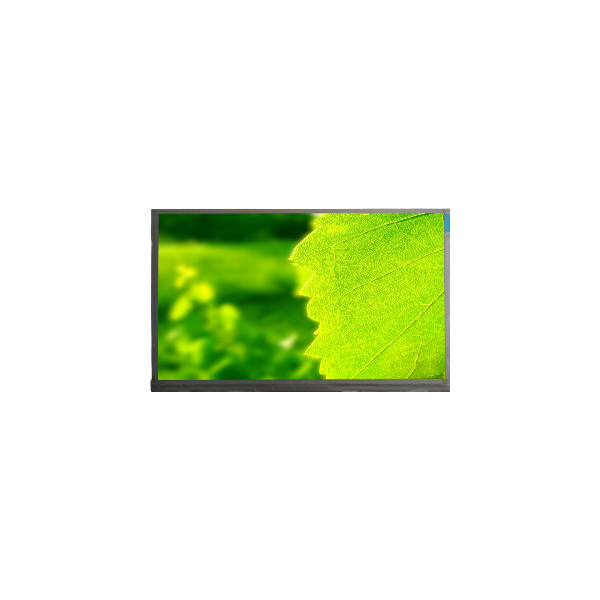

P070ACB-DB8 7.0 inch 600*1024 60Hz LCD Screen lcd Module

Brand Name:	Innolux
Model Number:	P070ACB-DB8
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

P070ACB-DB8

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL, Q-CUT (Full Cell)

Resolution:

600(RGB)×1024 170PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

89.28(W)×152.37(H) Mm

Designed For:

Pad & Tablet

Touchscreen:

On-Cell Touch, I²C

Supply Ability:

100000 Unit/Units per Month

Product Description

P070ACB-DB8 7.0 inch 600*1024 60Hz LCD Screen lcd Module

P070ACB-DB8 LCD Panel Product details :

Brand	Innolux
Model P/N	P070ACB-DB8
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, CELL, Q-CUT (Full Cell)
Resolution	600(RGB)×1024 170PPI
Pixel Format	RGB Vertical Stripe
Active Area	89.28(W)×152.371(H) mm
Bezel Opening	-
Outline Size	93.28(W)×159.82(H)×0.8(D) mm
Brightness	0 cd/m²
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Best View on	Symmetry
Glass Depth	0.40+0.40 mm
Display Colors	16.7M 50%NTSC
Frequency	60Hz
Weight	-
Surface	Without Polarizer
Contrast Ratio	800:1 (Typ.) (TM)
Display Mode	AAS, Normally Black, Transmissive
Response Time	25 (Typ.)(Tr+Td)
Transmissivity	4.35% (Typ.)(with Polarizer)
Lamp Type	No B/L
Touch Screen	On-Cell Touch, I²C
Application	Pad & Tablet
Driver IC	COGSuggest HX8279D
Environment	Operating Temp.: -10 ~ 60 °C ;Storage Temp.: -20 ~ 70 °C
P070ACB-DB8 7.0 inch 600*1024 60Hz LCD Screen lcd Module

P070ACB-DB8 LCD Panel Payment Instructions :

Accepted Payment Methods:

We prioritize the safety and convenience of our customers by accepting payments through Escrow, which allows you to pay securely online using your Credit Card.

Payment Timeline:

To ensure the timely processing and shipping of your order, please make your payment within 3 days of placing the order. Prompt payment is appreciated and helps us maintain efficient service. If you encounter any issues or delays with your payment, please don't hesitate to contact us immediately. We are here to assist you and resolve any problems to ensure a smooth transaction.

P070ACB-DB8 LCD Panel Shipping and Package :

P070ACB-DB8 LCD Panel Shipment Information :

Shipping Address:

We will ship your order to the address provided at the time of payment. Please ensure the address you entered is correct and up-to-date to avoid any delivery issues.

Estimated Delivery Time:

Typically, your order will arrive within 15-35 days. For orders shipped to Brazil, the estimated delivery time is 20-40 days. Some countries or regions may experience longer shipping times.

Delayed Shipments:

If your parcel has not arrived within the expected timeframe, please contact us first before taking any further action. We are here to assist you and will work to provide a satisfactory resolution.

Dispute Policy:

Please refrain from opening a dispute within the first 60 days after placing your order. If your order has not arrived after 60 days, you may contact us to request a refund or a resend of the product.

Customs Duty and Import Tax:

We are not responsible for any customs duties or import taxes that may be applicable in your country. Please check your local customs regulations for more information.

Important Instructions for Receiving and Handling Your P070ACB-DB8 LCD Panel :

Inspecting the Package Upon Arrival:

When you receive the package, carefully inspect its condition.

If you notice any obvious damage, dents, or deformities, prepare to record a video as you open the package. This evidence is crucial for any potential claims.

Reporting Damaged Goods:

If you find that the LCD panel is damaged, immediately take detailed images and videos showing the damage.

Send these visuals to us to document the issue.

Our team will handle shipping-related damages but not those caused during installation. To secure your rights, provide the requested evidence and initiate a dispute for a refund if necessary.

Testing Before Installation:

After confirming the screen is undamaged, thoroughly test its functionality before proceeding with installation.

Do not attempt to install the screen yourself unless you are a professional. We recommend that installation be carried out by qualified technical personnel. We are not responsible for damages resulting from unprofessional installation.

Product Authenticity and Labels:

Each product from our store includes a unique anti-tear label.

Do not remove this label, as it verifies the product's authenticity and origin from our store.

Documenting Product Issues:

If you encounter any issues with the product, ensure that your video proof includes the labels as evidence.

Following these guidelines will help ensure a smooth process and protect your purchase rights. Thank you for your cooperation.

P070ACB-DB8 LCD Panel FAQ :

Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .

Q: Why big order delivery time are long?

A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!

Q: Are you manufactory or trade company?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: Can you declared low value for my order when shipping?

A: Yes, We can do it for you if you need.
