LCD Screen Display Panel

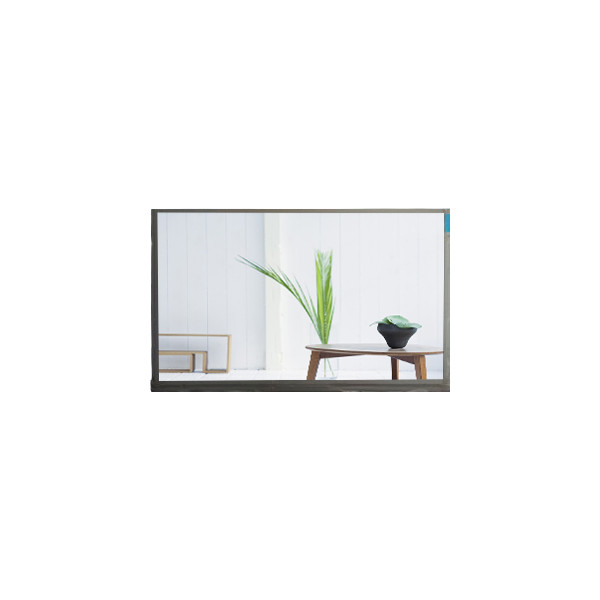

in stock 7.0 inch NP070NA-23D 1024*600 LCD Screen Monitor

All Category

Floor Standing Digital Signage

in stock 7.0 inch NP070NA-23D 1024*600 LCD Screen Monitor

Brand Name:	Innolux
Model Number:	NP070NA-23D
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

NP070NA-23D

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL, Q-CUT (Full Cell)

Resolution:

1024(RGB)×600, WSVGA 170PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

154.214(W)×85.92(H) Mm

Designed For:

Digital Photo Frame

Touchscreen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

in stock 7.0 inch NP070NA-23D 1024*600 LCD Screen Monitor

NP070NA-23D LCD Panel Product details :

Brand	Innolux
Model P/N	NP070NA-23D
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, CELL, Q-CUT (Full Cell)
Resolution	1024(RGB)×600, WSVGA 170PPI
Pixel Format	RGB Vertical Stripe
Active Area	154.214(W)×85.92(H) mm
Bezel Opening	-
Outline Dim.	161.9(H)×94.72(V)×0.8(D) mm
Treatment	Without Polarizer
Luminance	0 cd/m²
Contrast Ratio	800:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	10/15 (Typ.)(Tr/Td)
Viewing Angle	75/75/70/75 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Plate Thickness	0.40+0.40 mm
Transmittance	-
Support Color	16.7M
Light Source	No B/L
Weight	2.76±0.28g
Designed For	Digital Photo Frame
Frame Rate	-
Touch Panel	Without
D-IC Detail	COG Suggest NT52003 + NT51008
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
in stock 7.0 inch NP070NA-23D 1024*600 LCD Screen Monitor

NP070NA-23D LCD Panel Payment Instructions :

Accepted Payment Methods:

We prioritize the safety and convenience of our customers by accepting payments through Escrow, which allows you to pay securely online using your Credit Card.

Payment Timeline:

To ensure the timely processing and shipping of your order, please make your payment within 3 days of placing the order. Prompt payment is appreciated and helps us maintain efficient service. If you encounter any issues or delays with your payment, please don't hesitate to contact us immediately. We are here to assist you and resolve any problems to ensure a smooth transaction.

NP070NA-23D LCD Panel Shipping and Package :

NP070NA-23D LCD Panel Shipment Information :

Shipping Address:

We will ship your order to the address provided at the time of payment. Please ensure the address you entered is correct and up-to-date to avoid any delivery issues.

Estimated Delivery Time:

Typically, your order will arrive within 15-35 days. For orders shipped to Brazil, the estimated delivery time is 20-40 days. Some countries or regions may experience longer shipping times.

Delayed Shipments:

If your parcel has not arrived within the expected timeframe, please contact us first before taking any further action. We are here to assist you and will work to provide a satisfactory resolution.

Dispute Policy:

Please refrain from opening a dispute within the first 60 days after placing your order. If your order has not arrived after 60 days, you may contact us to request a refund or a resend of the product.

Customs Duty and Import Tax:

We are not responsible for any customs duties or import taxes that may be applicable in your country. Please check your local customs regulations for more information.

Important Instructions for Receiving and Handling Your NP070NA-23D LCD Panel :

Inspecting the Package Upon Arrival:

When you receive the package, carefully inspect its condition.

If you notice any obvious damage, dents, or deformities, prepare to record a video as you open the package. This evidence is crucial for any potential claims.

Reporting Damaged Goods:

If you find that the LCD panel is damaged, immediately take detailed images and videos showing the damage.

Send these visuals to us to document the issue.

Our team will handle shipping-related damages but not those caused during installation. To secure your rights, provide the requested evidence and initiate a dispute for a refund if necessary.

Testing Before Installation:

After confirming the screen is undamaged, thoroughly test its functionality before proceeding with installation.

Do not attempt to install the screen yourself unless you are a professional. We recommend that installation be carried out by qualified technical personnel. We are not responsible for damages resulting from unprofessional installation.

Product Authenticity and Labels:

Each product from our store includes a unique anti-tear label.

Do not remove this label, as it verifies the product's authenticity and origin from our store.

Documenting Product Issues:

If you encounter any issues with the product, ensure that your video proof includes the labels as evidence.

Following these guidelines will help ensure a smooth process and protect your purchase rights. Thank you for your cooperation.

NP070NA-23D LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of NP070NA-23D ?

A: Of course!If you make a large order, we will give you a discount.

Q: How long will I receive my goods NP070NA-23D ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: How to make payment of NP070NA-23D ?

A: We accept T/T , Paypal , western union .

Q: If I place order now,when will you ship the goods of NP070NA-23D ?

A: The order will be shipped within 2-3 working days after received your payment.
