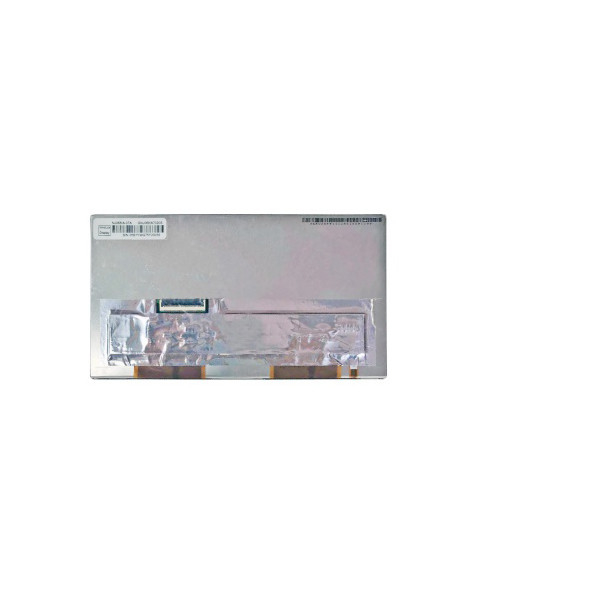

6.8 inch NJ068IA-07A 1280*720 60Hz LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | NJ068IA-07A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NJ068IA-07A | Diagonal Size: | 6.8" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1280(RGB)×720, WXGA 217PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 152.064(W)×79.503(H) Mm |
| Designed For: | Automotive Display | Touchscreen: | Without |
Product Description
6.8 inch NJ068IA-07A 1280*720 60Hz LCD Display Screen
NJ068IA-07A LCD Panel Product details :
| Brand | Innolux |
| Model P/N | NJ068IA-07A |
| Diagonal Size | 6.8" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×720, WXGA 217PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 152.064(W)×79.503(H) mm |
| Bezel Opening | - |
| Outline(mm) | 167 × 93 (H×V×D) |
| Treatment | Antiglare |
| Luminance | 550 cd/m² (Typ.) |
| Contrast Ratio | 900 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 15/10 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | AAS, Normally Black, Transmissive |
| Color Depth | 16.7M 70%NTSC |
| Backlight | 6S3PWLED, 20K hours, No Driver |
| Mass | 185g (Typ.) |
| Used for | Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit), 40 pinsConnector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 6.8 inch NJ068IA-07A 1280*720 60Hz LCD Display Screen | |
