Brand Name: | Innolux |
Model Number: | N156HCA-E5B |
MOQ: | 1 pcs |
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Payment Terms: | T/T, Western Union |

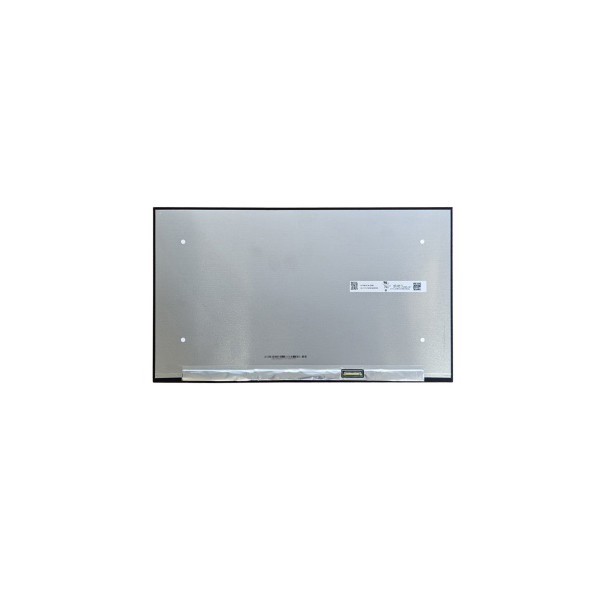

original 15.6 inch N156HCA-E5B 1920*1080 WLED LCD Screen
N156HCA-E5B LCD Panel Product details :
Brand | Innolux |
Model P/N | N156HCA-E5B |
Diagonal Size | 15.6" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1920(RGB)×1080, FHD 141PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 344.16(W)×193.59(H) mm |
Bezel Opening | - |
Outline(mm) | 350.66 × 205.24× 5.2 (H×V×D) |
Treatment | Antiglare, Hard coating (3H) |
Luminance | 250 cd/m² (Typ.) |
Contrast Ratio | 1000 : 1 (Typ.) (TM) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
Response | 14/11 (Typ.)(Tr/Td) ms |
Good View at | Symmetry |
Work Mode | AAS, Normally Black, Transmissive |
Color Depth | 16.7M 47%NTSC |
Backlight | WLED, 15K hours, With LED Driver |
Outline Shape | Slim (PCBA Bent, T≤3.0mm) |
Used for | Laptop |
Refresh Rate | 60Hz |
Touchscreen | Without |
Signal Type | eDP (2 Lanes), eDP1.2, 30 pins Connector |
Voltage Supply | 3.3V (Typ.) |
Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
original 15.6 inch N156HCA-E5B 1920*1080 WLED LCD Screen |
N156HCA-E5B LCD Panel Shipping and Package :
N156HCA-E5B LCD Panel FAQ :
Q: When will my order N156HCA-E5B ship?
A: The order are shipped within 1-2 working days after received the payment.
Q: Do you accept the sample order?
A: Yes , sample order is welcome.
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How long will I receive my goods of lcd N156HCA-E5B ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
