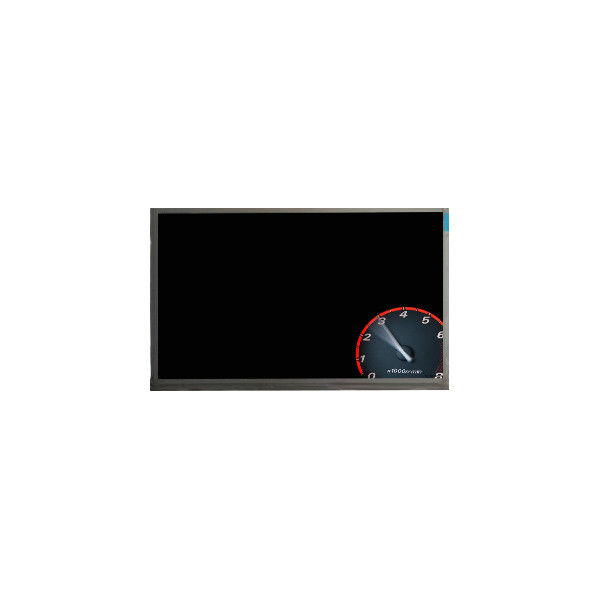

N133BGE-E41 1366*768 13.3 inch 60Hz LCD Screen lcd Module
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | N133BGE-E41 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | N133BGE-E41 | Diagonal Size: | 13.3" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1366(RGB)×768, WXGA 118PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 293.42(W)×164.97(H) Mm |
| Frequency: | 60Hz | Designed For: | Laptop |
Product Description
N133BGE-E41 1366*768 13.3 inch 60Hz LCD Screen lcd Module
N133BGE-E41 LCD Panel Product details :
| Brand | Innolux |
| Model P/N | N133BGE-E41 |
| Diagonal Size | 13.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 118PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 293.42(W)×164.97(H) mm |
| Bezel Opening | 296.82(W)×168.37(H) mm |
| Outline Dim. | 314.1(W)×188.75(H)×3.6(D) mm |
| Luminance | 200 cd/m² (Typ.) |
| View Direction | 6 o'clock |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) |
| Support Color | 262K |
| Form Style | Flat (PCBA Flat, T3.4~4.0mm) |
| Frame Rate | 60Hz |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Response Time | 8/8 (Typ.)(Tr/Td) |
| Operating Mode | TN, Normally White, Transmissive |
| Light Source | WLED [9S3P] , 15K hours , With LED Driver |
| Designed For | Laptop |
| Touch Panel | Without |
| Interface Type | eDP (1 Lane)30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C |
| N133BGE-E41 1366*768 13.3 inch 60Hz LCD Screen lcd Module | |
N133BGE-E41 LCD Panel Shipping and Package :
N133BGE-E41 LCD Panel FAQ :
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel N133BGE-E41 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
