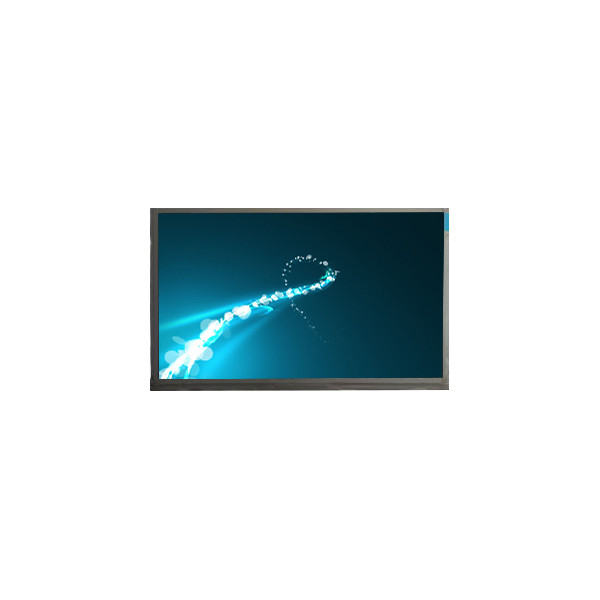

Original 1920*1080 N125HCG-GQ1 12.5 inch 262K LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | N125HCG-GQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | N125HCG-GQ1 | Diagonal Size: | 12.5" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 176PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 276.48(W)×155.52(H) Mm |
| Frequency: | 60Hz | Designed For: | Laptop |
Product Description
Original 1920*1080 N125HCG-GQ1 12.5 inch 262K LCD Screen
N125HCG-GQ1 LCD Panel Product details :
| Brand | Innolux |
| Model P/N | N125HCG-GQ1 |
| Diagonal Size | 12.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 176PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 276.48(W)×155.52(H) mm |
| Bezel Opening | - |
| View Direction | Symmetry |
| Response Time | 14/11 (Typ.)(Tr/Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | AAS, Normally Black, Transmissive |
| Support Color | 262K 99%sRGB |
| Light Source | WLED, 15K hours, With LED Driver |
| Form Style | Slim (PCBA Bent, T≤3.0mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (2 Lanes), eDP1.2Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Original 1920*1080 N125HCG-GQ1 12.5 inch 262K LCD Screen | |
N125HCG-GQ1 LCD Panel Shipping and Package :
N125HCG-GQ1 LCD Panel FAQ :
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel N125HCG-GQ1 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
