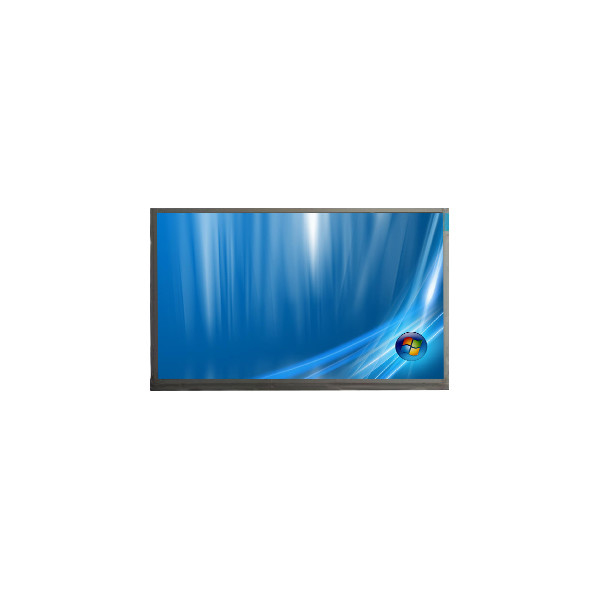

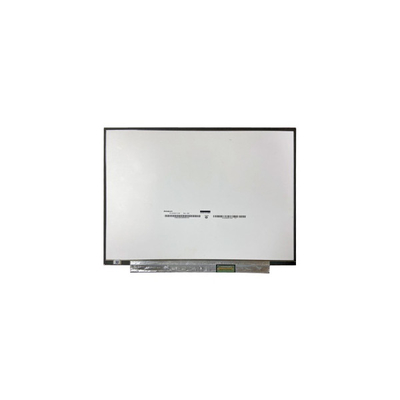

N120ACA-EA1 1366*912 12.0 inch 1000:1 LCD monitor Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | N120ACA-EA1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | N120ACA-EA1 | Diagonal Size: | 12.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1366(RGB)×912, HD+ 136PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 253.461(W)×169.222(H) Mm |
| Frequency: | 60Hz | Designed For: | Laptop |
Product Description
N120ACA-EA1 1366*912 12.0 inch 1000:1 LCD monitor Screen
N120ACA-EA1 LCD Panel Product details :
| Brand | Innolux |
| Model P/N | N120ACA-EA1 |
| Diagonal Size | 12.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×912, HD+ 136PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 253.461(W)×169.222(H) mm |
| Bezel Opening | - |
| Outline Dim. | 262.26(H)×194.12(V)×2.6(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 235 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 11/9 (Typ.)(Tr/Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | AAS, Normally Black, Transmissive |
| Support Color | 262K 50%NTSC |
| Light Source | WLED, 15K hours, With LED Driver |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (1 Lane), eDP1.2, 30 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| N120ACA-EA1 1366*912 12.0 inch 1000:1 LCD monitor Screen | |
N120ACA-EA1 LCD Panel Shipping and Package :
N120ACA-EA1 LCD Panel FAQ :
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
