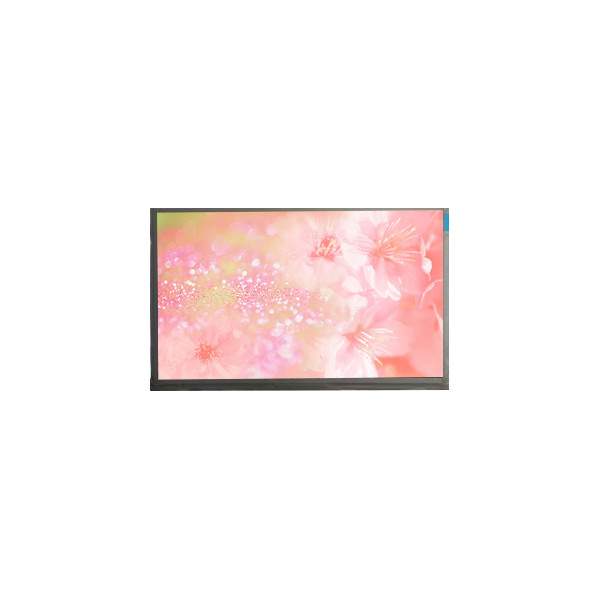

N116HSE-DA2 11.6 inch 1920*1080 LCD Screen LCD Module
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | N116HSE-DA2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | N116HSE-DA2 | Diagonal Size: | 11.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOB | Resolution: | 1920(RGB)×1080, FHD 190PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 256.32(W)×144.18(H) Mm |
| Frequency: | 60Hz | Designed For: | Laptop |
Product Description
N116HSE-DA2 11.6 inch 1920*1080 LCD Screen LCD Module
N116HSE-DA2 LCD Panel Product details :
| Brand | Innolux |
| Model P/N | N116HSE-DA2 |
| Diagonal Size | 11.6" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1920(RGB)×1080, FHD 190PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 256.32(W)×144.18(H) mm |
| Bezel Opening | - |
| Brightness | 0 cd/m² |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | AAS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 14/11 (Typ.)(Tr/Td) |
| Display Colors | 16.7M |
| Lamp Type | No B/L |
| Frequency | 60Hz |
| Touch Screen | - |
| Shape Style | - |
| Application | Laptop |
| Signal Interface | eDP (2 Lanes)Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| N116HSE-DA2 11.6 inch 1920*1080 LCD Screen LCD Module | |
N116HSE-DA2 LCD Panel Shipping and Package :
N116HSE-DA2 LCD Panel FAQ :
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel N116HSE-DA2 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Are you manufactory or trade company?
A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: When will my order N116HSE-DA2 ship?
A: The order are shipped within 1-2 working days after received the payment.
