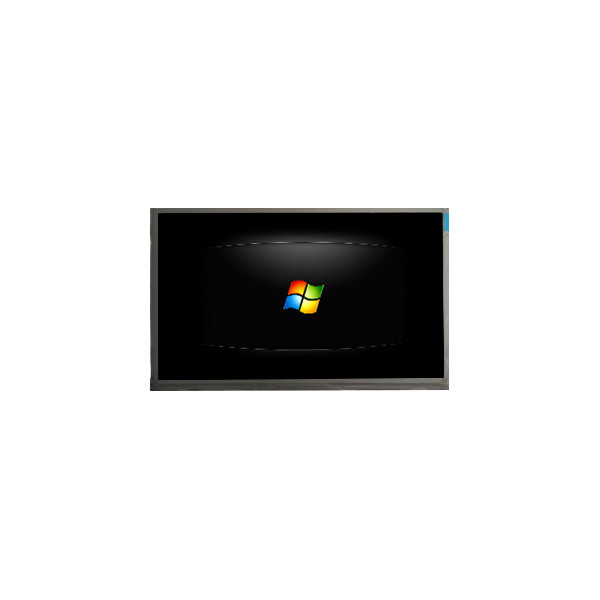

new 11.6 inch 1366*768 N116BGE-E42 30 pins LCD Screen in stock
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | N116BGE-E42 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | N116BGE-E42 | Diagonal Size: | 11.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1366(RGB)×768, WXGA 135PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 256.125(W)×144(H) Mm |
| Touch Screen: | Without | Designed For: | Laptop |
Product Description
new 11.6 inch 1366*768 N116BGE-E42 30 pins LCD Screen in stock
N116BGE-E42 LCD Panel Product details :
| Brand | Innolux |
| Model P/N | N116BGE-E42 |
| Diagonal Size | 11.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 135PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 256.125(W)×144(H) mm |
| Bezel Opening | - |
| Outline Size | 268(W)×174.5(H)×3.4(D) mm |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 3/7 (Typ.)(Tr/Td) |
| Display Colors | 262K 45%NTSC |
| Lamp Type | WLED, 15K hours, With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Flat (PCBA Flat, T3.4~4.0mm) |
| Application | Laptop |
| Signal Interface | eDP (1 Lane), eDP1.2, 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
| new 11.6 inch 1366*768 N116BGE-E42 30 pins LCD Screen in stock | |
N116BGE-E42 LCD Panel Shipping and Package :
N116BGE-E42 LCD Panel FAQ :
Q: When will my order N116BGE-E42 ship?
A: The order are shipped within 1-2 working days after received the payment.
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel N116BGE-E42 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Are you manufactory or trade company?
A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
