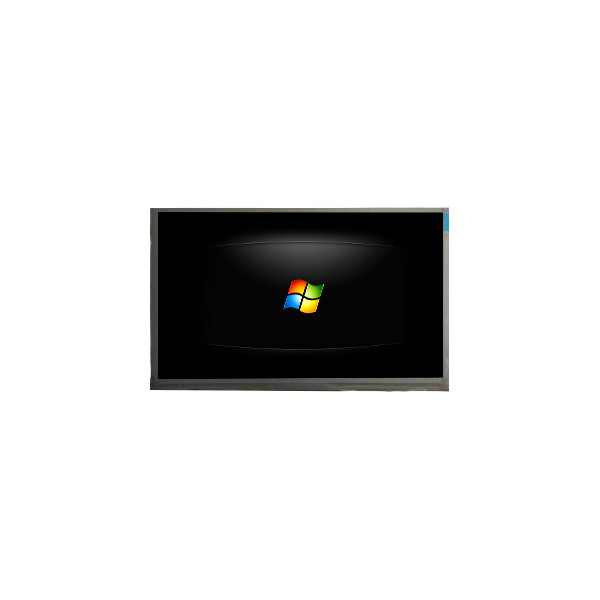

High Quality 11.6 inch1366*768 N116BCN-EB1 LCD Touch Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | N116BCN-EB1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | N116BCN-EB1 | Diagonal Size: | 11.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1366(RGB)×768, WXGA 135PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 256.125(W)×144(H) Mm |
| Touch Screen: | On-Cell Touch, I²C | Designed For: | Laptop |
Product Description
High Quality 11.6 inch1366*768 N116BCN-EB1 LCD Touch Screen
N116BCN-EB1 LCD Panel Product details :
| Brand | Innolux |
| Model P/N | N116BCN-EB1 |
| Diagonal Size | 11.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 135PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 256.125(W)×144(H) mm |
| Bezel Opening | - |
| Outline Size | 278(W)×168(H)×3.2(D) mm |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Brightness | 235 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | AAS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 14/11 (Typ.)(Tr/Td) |
| Display Colors | 262K 50%NTSC |
| Lamp Type | 11S2PWLED, 15K hours, With LED Driver |
| Frequency | 60Hz |
| Touch Screen | On-Cell Touch, I²C |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Application | Laptop |
| Signal Interface | eDP (1 Lane), eDP1.2, 40 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| High Quality 11.6 inch1366*768 N116BCN-EB1 LCD Touch Screen | |
N116BCN-EB1 LCD Display About Us :
Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.
Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.
Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.
N116BCN-EB1 LCD Display Product Details :
Condition:
Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.
Order Guidance:
If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.
Product Authenticity:
The LCD screens are original and are thoroughly tested before being sent to you.
N116BCN-EB1 LCD Display Friendly Reminder :
- Installation Guide:
- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.
- Professional Installation Recommended:
- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.
- Disassembly Knowledge:
- Make sure you understand the disassembly procedure before making a purchase.
- Return Policy:
- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.
N116BCN-EB1 LCD Panel Shipping and Package :
N116BCN-EB1 LCD Panel FAQ :
Q: How long will I receive my goods N116BCN-EB1?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of N116BCN-EB1?
A: We accept T/T , Paypal , western union .
Q: If I place order now,when will you ship the goods of N116BCN-EB1 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can you give me a discount if I need a large quantity of N116BCN-EB1?
A: Of course!If you make a large order, we will give you a discount.
Want to Know more details about this product
