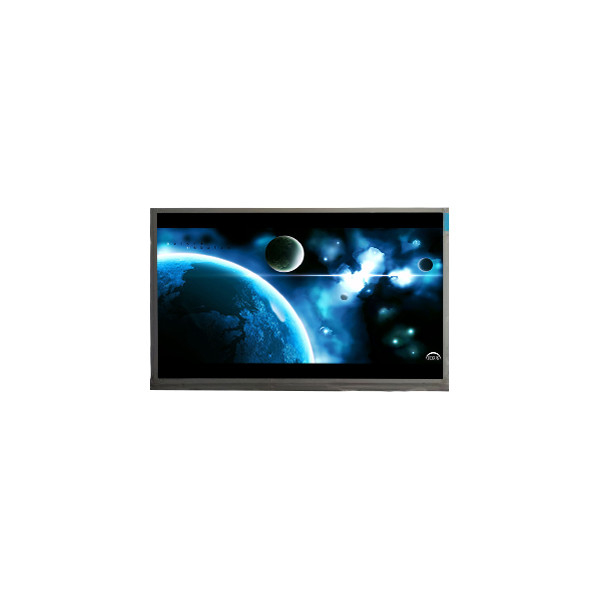

Hot Sell 10.1 inch N101JSA-P11 16.7M LCD Display screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | N101JSA-P11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | N101JSA-P11 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOB | Resolution: | 1200(RGB)×1920, WUXGA 225PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 135.36(W)×216.576(H) Mm |
| Touch Screen: | Without | Designed For: | Pad & Tablet |
Product Description
Hot Sell 10.1 inch N101JSA-P11 16.7M LCD Display screen
N101JSA-P11 LCD Panel Product details :
| Brand | Innolux |
| Model P/N | N101JSA-P11 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1200(RGB)×1920, WUXGA 225PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 135.36(W)×216.576(H) mm |
| Bezel Opening | - |
| Outline(mm) | 143.14 × 224.76× 1.27 (H×V×D) |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 14/11 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | AAS, Normally Black, Transmissive |
| Glass Thickness | 0.50+0.50 mm |
| Transmissivity | 5.0% (Typ.)(with Polarizer) |
| Color Depth | 16.7M 50%NTSC |
| Backlight | No B/L, No Driver |
| Mass | 100g (Typ.) |
| Used for | Pad & Tablet |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Driver IC list | Built-inCOG3 source + 3 gate chips |
| Signal Type | LVDS (2 ch, 8-bit), 50 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
| Hot Sell 10.1 inch N101JSA-P11 16.7M LCD Display screen | |
N101JSA-P11 LCD Display About Us :
Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.
Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.
Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.
N101JSA-P11 LCD Display Product Details :
Condition:
Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.
Order Guidance:
If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.
Product Authenticity:
The LCD screens are original and are thoroughly tested before being sent to you.
N101JSA-P11 LCD Display Friendly Reminder :
- Installation Guide:
- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.
- Professional Installation Recommended:
- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.
- Disassembly Knowledge:
- Make sure you understand the disassembly procedure before making a purchase.
- Return Policy:
- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.
N101JSA-P11 LCD Panel Shipping and Package :
N101JSA-P11 LCD Panel FAQ :
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
