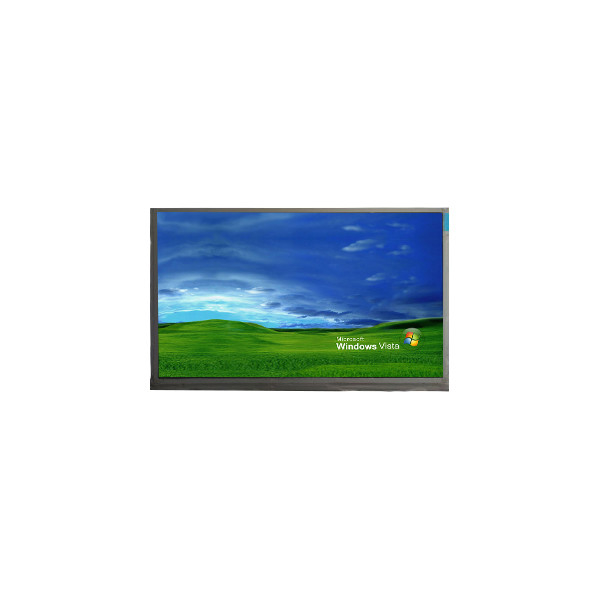

1280*800 10.1 inch N101ICE-G63 350 cd/m2 LCD screen Display
Product Details:
Place of Origin: | China |
Brand Name: | Innolux |
Model Number: | N101ICE-G63 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | N101ICE-G63 | Diagonal Size: | 10.1" |
---|---|---|---|
Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1280(RGB)×800, WXGA 149PPI |
Pixel Format: | RGB Vertical Stripe | Active Area: | 216.96(W)×135.6(H) Mm |
Touch Screen: | Without | Designed For: | Pad & Tablet |
Product Description
1280*800 10.1 inch N101ICE-G63 350 cd/m2 LCD screen Display
N101ICE-G63 LCD Panel Product details :
Brand | Innolux |
Model P/N | N101ICE-G63 |
Diagonal Size | 10.1" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1280(RGB)×800, WXGA 149PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 216.96(W)×135.6(H) mm |
Bezel Opening | - |
Outline Dim. | 228.6(H)×143(V)×4.3(D) mm |
Treatment | Glare (Haze 0%), Hard coating (3H) |
Luminance | 350 cd/m² (Typ.) |
Contrast Ratio | 1000:1 (Typ.) (TM) |
View Direction | Symmetry |
Response Time | 10/15 (Typ.)(Tr/Td) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
Operating Mode | AAS, Normally Black, Transmissive |
Support Color | 16.7M 60%NTSC |
Light Source | WLED [6 strings], 12K hours, W/O Driver |
Weight | 130g (Max.) |
Designed For | Pad & Tablet |
Frame Rate | 60Hz |
Touch Panel | Without |
Interface Type | MIPI (4 data lanes), 39 pinsConnector |
Power Supply | 1.8/3.3V (Typ.)(VDDI/VCI) |
Environment | Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C |
1280*800 10.1 inch N101ICE-G63 350 cd/m2 LCD screen Display |
N101ICE-G63 LCD Panel Shipping and Package :
N101ICE-G63 LCD Panel FAQ :
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel N101ICE-G63 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
