| Brand Name: | Innolux |
| Model Number: | N101ICE-G61 |
| MOQ: | 1 pcs |
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Payment Terms: | T/T, Western Union |

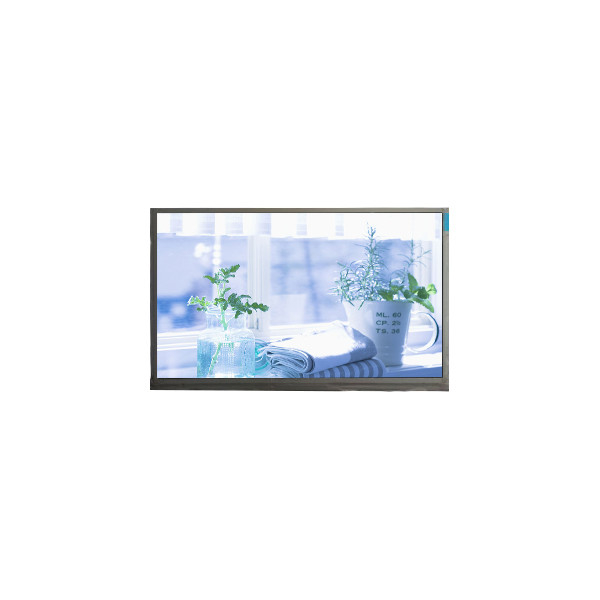

N101ICE-G61 10.1 inch 1280*800 LCD screen for Pad Tablet
N101ICE-G61 LCD Panel Product details :
| Brand | Innolux |
| Model P/N | N101ICE-G61 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×800, WXGA 149PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 216.96(W)×135.6(H) mm |
| Bezel Opening | - |
| Outline Size | 228.6(W)×149.2(H)×4.6(D) mm |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 10/15 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | AAS, Normally Black, Transmissive |
| Color Depth | 16.7M 50%NTSC |
| Backlight | 6 stringsWLED, No Driver |
| Mass | 160g (Typ.) |
| Used for | Pad & Tablet |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | MIPI (4 data lanes), 39 pinsConnector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: -10 ~ 50 °C |
| N101ICE-G61 10.1 inch 1280*800 LCD screen for Pad Tablet | |
N101ICE-G61 LCD Panel Shipping and Package :
![]()
N101ICE-G61 LCD Panel FAQ :
Q: What happen if the lcd panel N101ICE-G61 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
