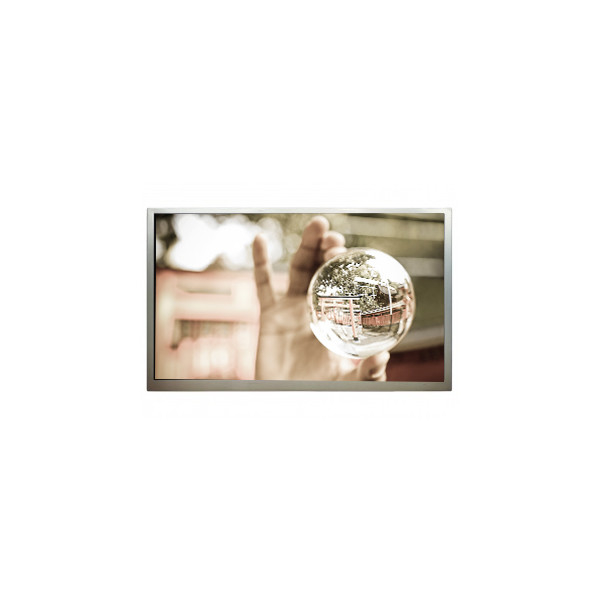

SN238CS03-4 23.8 inch 1920*1080 LVDS LCD Screen Parts
Product Details:
| Place of Origin: | China |
| Brand Name: | HKC |
| Model Number: | SN238CS03-4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | SN238CS03-4 | Diagonal Size: | 23.8" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOB | Resolution: | 1920(RGB)×1080, FHD 92PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 527.04(W)×296.46(H) Mm |
| Touch Screen: | Without | Application: | Desktop Monitor |
Product Description
SN238CS03-4 23.8 inch 1920*1080 LVDS LCD Screen Parts
SN238CS03-4 LCD Panel Product details :
| Brand | HKC |
| Model P/N | SN238CS03-4 |
| Diagonal Size | 23.8" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1920(RGB)×1080, FHD 92PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 527.04(W)×296.46(H) mm |
| Bezel Opening | - |
| Outline Size | 534.64(W)×308.06(H)×1.06(D) mm |
| Brightness | 0 cd/m² |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Glass Depth | - |
| Display Colors | 16.7M 72%NTSC |
| Frequency | 60Hz |
| Weight | 420g (Typ.) |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Display Mode | HIS, Normally Black, Transmissive |
| Response Time | 14 (Typ.)(G to G) |
| Transmissivity | 5.1% (Typ.)(with Polarizer) |
| Lamp Type | No B/L |
| Touch Screen | Without |
| Application | Desktop Monitor |
| Driver IC | COFBuilt-in 6 source chips |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Input Voltage | 12V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
| SN238CS03-4 23.8 inch 1920*1080 LVDS LCD Screen Parts | |
