LCD Screen Display Panel

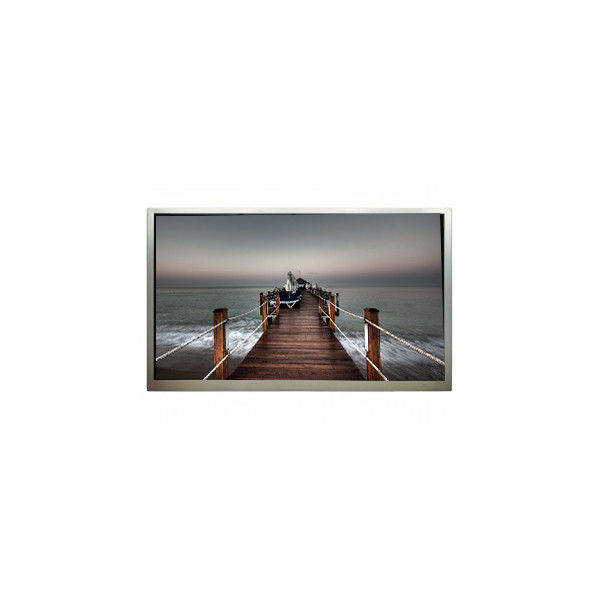

in stock 5.9 inch 720*1440 QM059HS01-1 LCD Screen Module

All Category

Floor Standing Digital Signage

in stock 5.9 inch 720*1440 QM059HS01-1 LCD Screen Module

Brand Name:	HKC
Model Number:	QM059HS01-1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

QM059HS01-1

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL, Q-CUT (Full Cell)

Resolution:

720(RGB)×1440 271PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

67.392(W)×134.784(H) Mm

Touch Screen:

Without

Application:

Mobile Phone

Supply Ability:

100000 Unit/Units per Month

Product Description

in stock 5.9 inch 720*1440 QM059HS01-1 LCD Screen Module

QM059HS01-1 LCD Panel Product details :

Brand	HKC
Model P/N	QM059HS01-1
Diagonal Size	5.9"
Panel Type	a-Si TFT-LCD, CELL, Q-CUT (Full Cell)
Resolution	720(RGB)×1440 271PPI
Pixel Format	RGB Vertical Stripe
Active Area	67.392(W)×134.784(H) mm
Bezel Opening	-
Outline Size	69.392(W)×140.584(H)×0.8(D) mm
Brightness	0 cd/m²
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Best View on	Symmetry
Glass Depth	0.40+0.40 mm
Display Colors	16.7M 70%NTSC
Frequency	-
Weight	22.0g (Typ.)
Surface	-
Contrast Ratio	1000:1 (Typ.) (TM)
Display Mode	HIS, Normally Black, Transmissive
Response Time	35 (Typ.)(Tr+Td)
Transmissivity	3.7% (Typ.)
Lamp Type	No B/L
Touch Screen	Without
Application	Mobile Phone
Driver IC	COGSuggest NV3051F, NV3051D, NV3054A, ER68576A, ER68577A, XM62161, ILI9881C-04, GC9702, AXS1832, HX8394F-AN, GH8555BC, ST7703, FC11920, JD9365DA-H3, HI8558J
Environment	Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C
in stock 5.9 inch 720*1440 QM059HS01-1 LCD Screen Module

QM059HS01-1 LCD Panel Shipment :

· We're not responsible for any accidents delays or other issues that are the resposibility of the shipping service.But we will help you to track the package until you get.

· Please make sure to double check your address before completing your payment.

· An email will be sent as package is process for shipment .We will provide tracking number for you to check the package online.

· Customers are responsible for customs taxes and duties where applicable.

· Any import charges or fees are the buyer's responsibility. If the package can't be delivered because of the buyers reason(including refusing to sign), buyer should afford all the extra cost!

QM059HS01-1 LCD Panel Shipping and Package :

in stock 5.9 inch 720*1440 QM059HS01-1 LCD Screen Module 0

QM059HS01-1 LCD Panel Shipment Information :

Shipment Policies

Responsibility for Delays and Issues: While we are committed to helping you track your package, please note that we are not responsible for any accidents, delays, or other issues that are the responsibility of the shipping service. We will, however, assist you in tracking your package until it reaches you.

Address Verification: It is crucial to double-check your shipping address before completing your payment. Ensuring that the address is accurate helps prevent delivery issues and delays.

Shipping Notification: Once your package is processed for shipment, you will receive an email notification. This email will include the tracking number, which you can use to monitor your package's status online.

Customs Taxes and Duties: Customers are responsible for any customs taxes and duties applicable in their country. Please be aware of your local regulations regarding import charges to avoid unexpected fees.

Import Charges: Any additional import charges or fees imposed by your country are the buyer's responsibility. If a package cannot be delivered due to reasons attributable to the buyer (such as refusal to sign for the package), the buyer will be responsible for any additional costs incurred.

QM059HS01-1 LCD Panel Return and Warranty Information :

Return Policy

Inspection and Exchange: All goods undergo two inspections before shipment to guarantee quality. If you are not satisfied with your purchase, you may exchange the item within one week. To initiate an exchange, please contact us within 24 hours of receiving your purchase.

Condition of Return Items: Items must be returned in their original condition, including the box and all accessories. Items showing signs of man-made defects, such as breakage or scratches, are not eligible for return or exchange.

Return Shipping: For returning any items, please use EMS (Express Mail Service) or your local postal service to send the item back to us.

Warranty Policy

Warranty Duration: All items come with a six-month warranty, covering any issues not caused by human error or damage. If your item has a defect not caused by man-made problems, we will replace it for you free of charge.

Best After-Sale Service: We pride ourselves on providing excellent after-sale service. Should any problems arise, we are dedicated to resolving them to ensure customer satisfaction.

QM059HS01-1 LCD Panel FAQ :

Q: How long will I receive my goods QM059HS01-1 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: How to make payment of QM059HS01-1 ?

A: We accept T/T , Paypal , western union .

Q: If I place order now,when will you ship the goods of QM059HS01-1 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can you give me a discount if I need a large quantity of QM059HS01-1 ?

A: Of course!If you make a large order, we will give you a discount.
