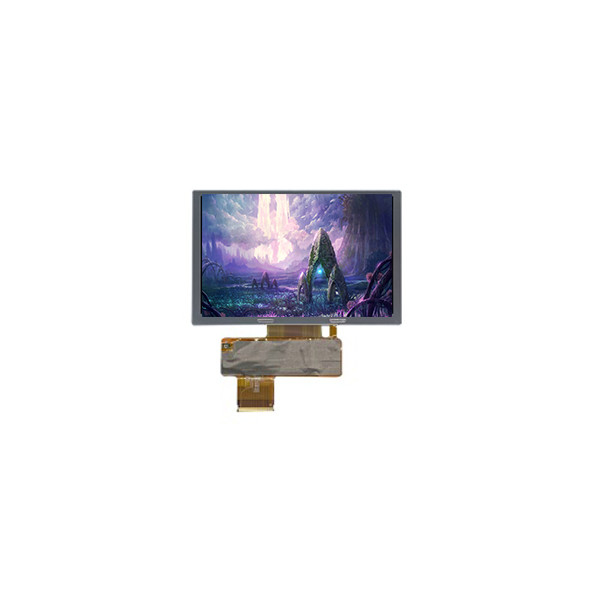

TM059YYH01 5.9 inch 480*800 16.7M LCD Screen Panel

All Category

Floor Standing Digital Signage

TM059YYH01 5.9 inch 480*800 16.7M LCD Screen Panel

Brand Name:	TIANMA
Model Number:	TM059YYH01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TM059YYH01

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL, Q-CUT (Full Cell)

Resolution:

480(RGB)×800, WVGA 158PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

74.88(W)×129.24(H) Mm

Best View On:

12 O'clock

Application:

Mobile Phone

Driver IC:

COG Suggest HX8363-A00, HX8363-A01, HX8363-A03, HX8363-B00

Environment:

Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C

Supply Ability:

100000 Unit/Units per Month

Product Description

TM059YYH01 5.9 inch 480*800 16.7M LCD Screen Panel

TM059YYH01 LCD Panel Product details :

Brand	TIANMA
Model P/N	TM059YYH01
Diagonal Size	5.9"
Panel Type	a-Si TFT-LCD, CELL, Q-CUT (Full Cell)
Resolution	480(RGB)×800, WVGA 158PPI
Pixel Format	RGB Vertical Stripe
Active Area	74.88(W)×129.24(H) mm
Bezel Opening	-
Outline Size	81.68(W)×140.6(H)×1(D) mm
Surface	Without Polarizer
Brightness	0 cd/m²
Contrast Ratio	500:1 (Typ.) (TM)
Viewing Angle	70/70/60/70 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	12 o'clock
Response Time	25 (Typ.)(Tr+Td)
Glass Depth	0.50+0.50 mm
Transmissivity	6.0% (Typ.)(with Polarizer)
Display Colors	16.7M 50%NTSC
Lamp Type	No B/L
Frequency	-
Touch Screen	Without
Driver IC	COG Suggest HX8363-A00, HX8363-A01, HX8363-A03, HX8363-B00
Panel Weight	-
Application	Mobile Phone
Environment	Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C

TM059YYH01 LCD Panel Shipment :

· We're not responsible for any accidents delays or other issues that are the resposibility of the shipping service.But we will help you to track the package until you get.

· Please make sure to double check your address before completing your payment.

· An email will be sent as package is process for shipment .We will provide tracking number for you to check the package online.

· Customers are responsible for customs taxes and duties where applicable.

· Any import charges or fees are the buyer's responsibility. If the package can't be delivered because of the buyers reason(including refusing to sign), buyer should afford all the extra cost!

TM059YYH01 LCD Panel Shipping and Package :

TM059YYH01 5.9 inch 480*800 16.7M LCD Screen Panel 0

TM059YYH01 LCD Panel Shipment Information :

Shipment Policies

Responsibility for Delays and Issues: While we are committed to helping you track your package, please note that we are not responsible for any accidents, delays, or other issues that are the responsibility of the shipping service. We will, however, assist you in tracking your package until it reaches you.

Address Verification: It is crucial to double-check your shipping address before completing your payment. Ensuring that the address is accurate helps prevent delivery issues and delays.

Shipping Notification: Once your package is processed for shipment, you will receive an email notification. This email will include the tracking number, which you can use to monitor your package's status online.

Customs Taxes and Duties: Customers are responsible for any customs taxes and duties applicable in their country. Please be aware of your local regulations regarding import charges to avoid unexpected fees.

Import Charges: Any additional import charges or fees imposed by your country are the buyer's responsibility. If a package cannot be delivered due to reasons attributable to the buyer (such as refusal to sign for the package), the buyer will be responsible for any additional costs incurred.

TM059YYH01 LCD Panel Return and Warranty Information :

Return Policy

Inspection and Exchange: All goods undergo two inspections before shipment to guarantee quality. If you are not satisfied with your purchase, you may exchange the item within one week. To initiate an exchange, please contact us within 24 hours of receiving your purchase.

Condition of Return Items: Items must be returned in their original condition, including the box and all accessories. Items showing signs of man-made defects, such as breakage or scratches, are not eligible for return or exchange.

Return Shipping: For returning any items, please use EMS (Express Mail Service) or your local postal service to send the item back to us.

Warranty Policy

Warranty Duration: All items come with a six-month warranty, covering any issues not caused by human error or damage. If your item has a defect not caused by man-made problems, we will replace it for you free of charge.

Best After-Sale Service: We pride ourselves on providing excellent after-sale service. Should any problems arise, we are dedicated to resolving them to ensure customer satisfaction.

TM059YYH01 LCD Panel FAQ :

Q: How do you ship my goods TM059YYH01 ?

A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.

Q: How long is the warranty of TM059YYH01 ?

A: 90days warranty .

Q: Are you manufactory or trade company ?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: Can You declare my order of LCD panel TM059YYH01 at a very low value ?

A: Yes , we can . pls inform us before shipping .
