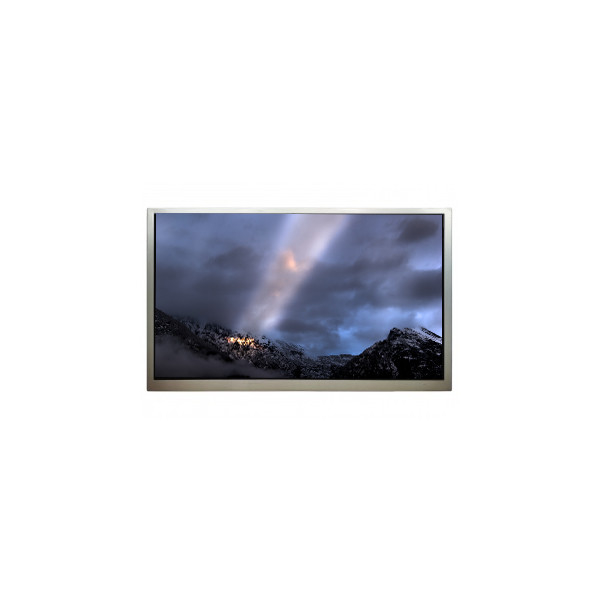

New 12.3 inch PV123CS01-1 1920*720 1500 : 1 LCD screen

Brand Name:	HKC
Model Number:	PV123CS01-1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

PV123CS01-1

Diagonal Size:

12.3"

Panel Type:

A-Si TFT-LCD, CELL, FOB

Resolution:

1920(RGB)×720 167PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

292.032(W)×109.512(H) Mm

Frame Rate:

Used For:

TVAutomotive DisplaySets

Supply Ability:

100000 Unit/Units per Month

Product Description

New 12.3 inch PV123CS01-1 1920*720 1500 : 1 LCD screen

PV123CS01-1 LCD Panel Product details :

Brand	HKC
Model P/N	PV123CS01-1
Diagonal Size	12.3"
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	1920(RGB)×720 167PPI
Pixel Format	RGB Vertical Stripe
Active Area	292.032(W)×109.512(H) mm
Bezel Opening	-
Outline(mm)	300.032 × 120.512× 1.08 (H×V×D)
Treatment	Hard coating (3H)
Luminance	0 cd/m²
Contrast Ratio	1500 : 1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Response	30 (Max.)(G to G) ms
Good View at	Symmetry
Work Mode	HIS, Normally Black, Transmissive
Glass Thickness	0.40+0.40 mm
Transmissivity	-
Color Depth	16.7M 75%NTSC
Backlight	No B/L
Mass	109g (Typ.)
Used for	Automotive Display
Refresh Rate	60Hz
Touchscreen	Without
Driver IC list	Built-inCOG1 source chips
Signal Type	LVDS (2 ch, 8-bit), 50 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C
New 12.3 inch PV123CS01-1 1920*720 1500 : 1 LCD screen

PV123CS01-1 LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

PV123CS01-1 LCD Panel Shipping and Package :

New 12.3 inch PV123CS01-1 1920*720 1500 : 1 LCD screen 0

PV123CS01-1 LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

PV123CS01-1 LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

PV123CS01-1 LCD Panel FAQ :

Q:Can you declared low value for my order when shipping?

A:Yes, We can do it for you if you need.

Q: What happen if the lcd panel PV123CS01-1 I received can't work ?

A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.

Q: Are you manufactory or trade company?

A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: When will my order PV123CS01-1 ship?

A: The order are shipped within 1-2 working days after received the payment.
