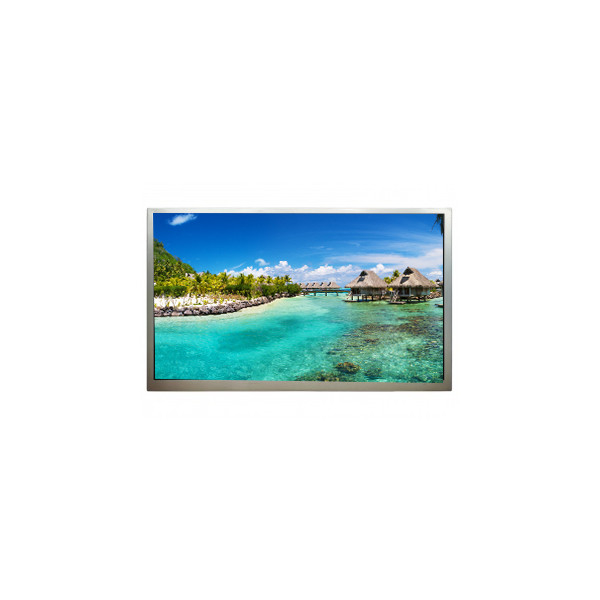

10.3 inch PV103CS01-1 1920*720 LCD Screen for Automotive Display

Brand Name:	HKC
Model Number:	PV103CS01-1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

PV103CS01-1

Diagonal Size:

10.3"

Panel Type:

A-Si TFT-LCD, CELL, FOB

Resolution:

1920(RGB)×720 200PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

243.648(W)×91.368(H) Mm

Frame Rate:

Used For:

Automotive Display

Supply Ability:

100000 Unit/Units per Month

Product Description

10.3 inch PV103CS01-1 1920*720 LCD Screen for Automotive Display

PV103CS01-1 LCD Panel Product details :

Brand	HKC
Model P/N	PV103CS01-1
Diagonal Size	10.3"
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	1920(RGB)×720 200PPI
Pixel Format	RGB Vertical Stripe
Active Area	243.648(W)×91.368(H) mm
Bezel Opening	-
Outline Dim.	251.148(H)×101.098(V)×1.08(D) mm
Treatment	Hard coating (3H)
Luminance	0 cd/m²
Contrast Ratio	1500:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	20 (Typ.)(G to G)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	HIS, Normally Black, Transmissive
Plate Thickness	0.40+0.40 mm
Transmittance	3.8% (Typ.)
Support Color	16.7M 70%NTSC
Light Source	No B/L
Weight	-
Designed For	Automotive Display
Frame Rate	60Hz
Touch Panel	Without
D-IC Detail	COG Built-in 1 source + 2 gate chips
Interface Type	LVDS (2 ch, 8-bit), 50 pinsConnector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C
10.3 inch PV103CS01-1 1920*720 LCD Screen for Automotive Display

PV103CS01-1 LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

PV103CS01-1 LCD Panel Shipping and Package :

10.3 inch PV103CS01-1 1920*720 LCD Screen for Automotive Display 0

PV103CS01-1 LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

PV103CS01-1 LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

PV103CS01-1 LCD Panel FAQ :

Q: Can you declared low value for my order when shipping?

A: Yes, We can do it for you if you need.

Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .

Q: Why big order delivery time are long?

A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!

Q: Are you manufactory or trade company?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
