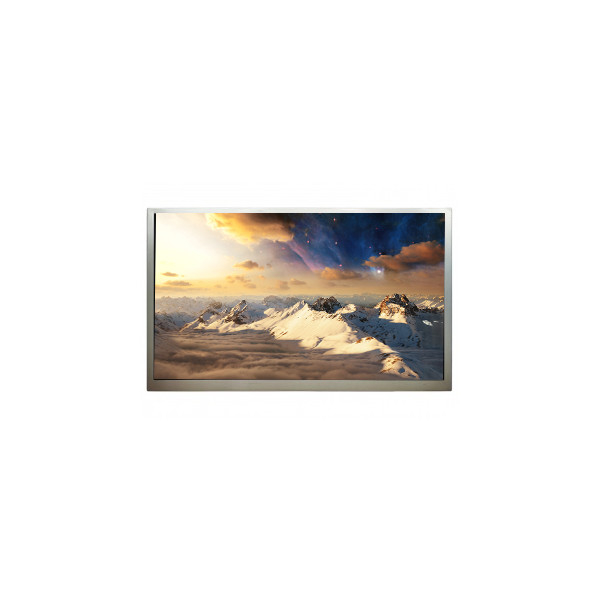

PT860GS01-2 86.0 inch LCD Screen for nteractive Whiteboard
Product Details:
| Place of Origin: | China |
| Brand Name: | HKC |
| Model Number: | PT860GS01-2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | PT860GS01-2 | Diagonal Size: | 86.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL | Resolution: | 3840(RGB)×2160, UHD 51PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 1895.04(W)×1065.96(H) Mm |
| Frame Rate: | 120Hz | Used For: | TV Sets、Digital Signage、Interactive Whiteboard |
Product Description
PT860GS01-2 86.0 inch LCD Screen for nteractive Whiteboard
PT860GS01-2 LCD Panel Product details :
| Brand | HKC |
| Model P/N | PT860GS01-2 |
| Diagonal Size | 86" |
| Panel Type | a-Si TFT-LCD, CELL |
| Resolution | 3840(RGB)×2160, UHD 51PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 1895.04(W)×1065.96(H) mm |
| Bezel Opening | - |
| Outline(mm) | 1913.1(W)×1084(H)×1.24(D) |
| Luminance | 0 (cd/m²) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Glass Thickness | 0.50+0.55 mm |
| Color Depth | 1.07B 72% NTSC |
| Mass | 5.50Kgs (Typ.) |
| Refresh Rate | 120Hz |
| Treatment | Antiglare (Haze 3%), Hard coating (3H) |
| Contrast Ratio | 1200 : 1 (Typ.) (TM) |
| Work Mode | HIS, Normally Black, Transmissive |
| Response | 8 (Typ.)(G to G) ms |
| Transmissivity | 5.5% (Typ.)(with Polarizer) |
| Backlight | No B/L |
| Used for | TV Sets,Digital Signage,Interactive Whiteboard |
| Touchscreen | Without |
| Driver IC list | Built-inCOF16 source chips |
| Signal Type | V-by-One 16 lane, 97 pins Connector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| PT860GS01-2 86.0 inch LCD Screen for nteractive Whiteboard | |
PT860GS01-2 LCD Panel Note :
Model Verification:
Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.
Comprehensive Testing:
We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.
PT860GS01-2 LCD Panel Shipping and Package :
PT860GS01-2 LCD Panel Shipping Guidelines:
Address Confirmation:
It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.
Shipment Timeline:
Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.
PT860GS01-2 LCD Panel ESTIMATED DELIVERY TIME :
Standard Shipping:
The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.
Expedited Shipping:
For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.
PT860GS01-2 LCD Panel FAQ :
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
