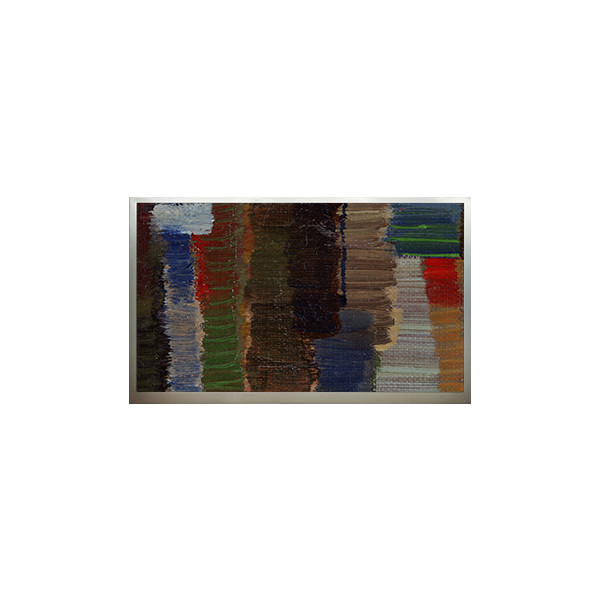

Original 1920*1080 23.6 inch M236H1-P01 60Hz LCD Screen

Brand Name:	CMO
Model Number:	M236H1-P01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M236H1-P01

Diagonal Size:

23.6"

Panel Type:

A-Si TFT-LCD, CELL, FOB

Resolution:

1920(RGB)×1080, FHD 93PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

521.28(W)×293.22(H) Mm

Frame Rate:

Used For:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

Original 1920*1080 23.6 inch M236H1-P01 60Hz LCD Screen

M236H1-P01 LCD Panel Product details :

Brand	CMO
Model P/N	M236H1-P01
Diagonal Size	23.6"
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	1920(RGB)×1080, FHD 93PPI
Pixel Format	RGB Vertical Stripe
Active Area	521.28(W)×293.22(H) mm
Bezel Opening	-
Luminance	0 cd/m²
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)
Response	1.5/3.5 (Typ.)(Tr/Td) ms
Good View at	6 o'clock
Work Mode	TN, Normally White, Transmissive
Glass Thickness	-
Transmissivity	5.25% (Typ.)(with Polarizer)
Color Depth	16.7M 70%NTSC
Backlight	No B/L
Mass	720g (Max.)
Used for	Desktop Monitor
Refresh Rate	60Hz
Touchscreen	Without
Driver IC list	Built-in COG 8 source COF + 4 gate COG chips
Signal Type	LVDS (2 ch, 8-bit), 30 pinsConnector
Voltage Supply	5.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

M236H1-P01 LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

M236H1-P01 LCD Panel Shipping and Package :

Original 1920*1080 23.6 inch M236H1-P01 60Hz LCD Screen 0

M236H1-P01 LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

M236H1-P01 LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

M236H1-P01 LCD Panel FAQ :

Q: Can You declare my order of M236H1-P01 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can you give me a discount if I need a large quantity of M236H1-P01 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of M236H1-P01 ?

A: Of course!sample order is welcome !

Q: Can I pay my order of M236H1-P01 via credit card ?

A: Yes!you can use your credit card through your Paypal account.
