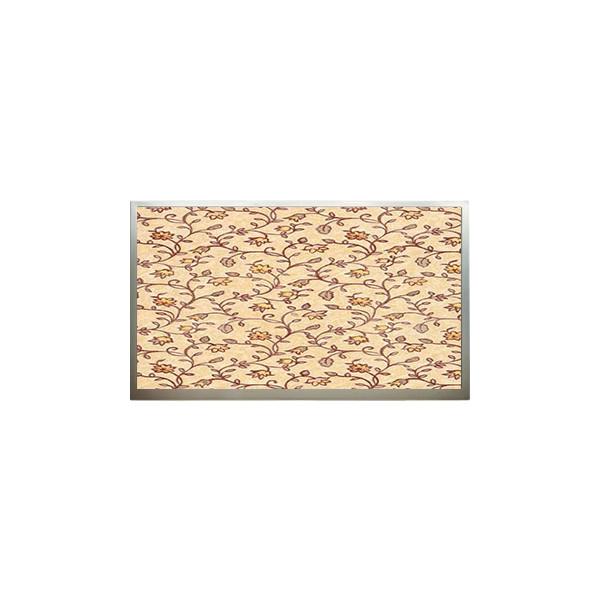

High Quality 1280*800 14.1 inch N141I6-L02 60Hz LCD Panel
Product Details:
Place of Origin: | China |
Brand Name: | CMO |
Model Number: | N141I6-L02 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | N141I6-L02 | Diagonal Size: | 14.1" |
---|---|---|---|
Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1280(RGB)×800, WXGA 107PPI |
Pixel Format: | RGB Vertical Stripe | Active Area: | 303.36(W)×189.6(H) Mm |
Frame Rate: | 60Hz | Used For: | Laptop |
Product Description
High Quality 1280*800 14.1 inch N141I6-L02 60Hz LCD Panel
N141I6-L02 LCD Panel Product details :
Brand | CMO |
Model P/N | N141I6-L02 |
Diagonal Size | 14.1" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1280(RGB)×800, WXGA 107PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 303.36(W)×189.6(H) mm |
Bezel Opening | 306.76(W)×193.0(H) mm |
Outline Size | 319.5(W)×205.5(H)×5.5(D) mm |
Surface | Glare (Haze 0%), Hard coating (3H) |
Brightness | 200 cd/m² (Typ.) |
Contrast Ratio | 650:1 (Typ.) (TM) |
Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) |
Display Mode | TN, Normally White, Transmissive |
Best View on | - |
Response Time | 3/7 (Typ.)(Tr/Td) |
Display Colors | 262K 46%NTSC |
Lamp Type | 8S6PWLED, 15K hours, Without Driver |
Frequency | 60Hz |
Touch Screen | Without |
Shape Style | Wedge (PCBA Bent, T≥5.2mm) |
Application | Laptop |
Signal Interface | LVDS (1 ch, 6-bit), 30 pins Connector |
Input Voltage | 3.3V (Typ.) |
Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
N141I6-L02 LCD Panel Shipping and Package :
N141I6-L02 LCD Panel FAQ :
Q: Do you accept sample orders of N141I6-L02 ?
A: Of course! Sample order is welcome.
Q: Can I pay my order of N141I6-L02 vai credit card ?
A: Yes! You can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90 days warranty.
Q: If I place order now, when will you ship the goods of N141I6-L02 ?
A: The order will be shipped within 2-3 working days after received your payment.
