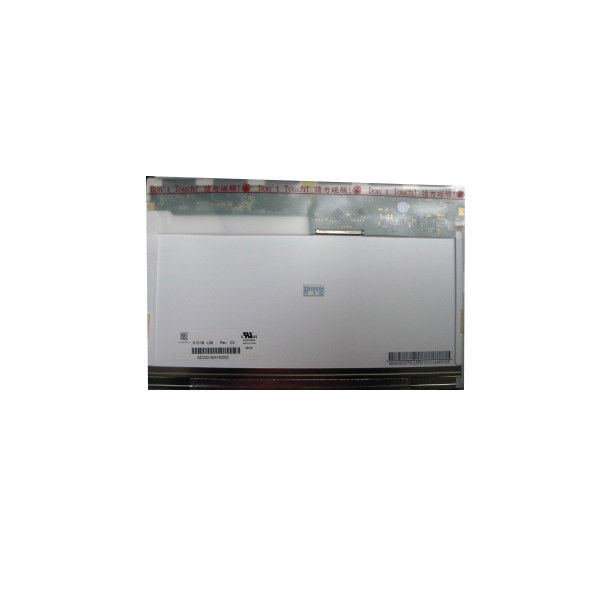

N121IB-L06 1280*800 hot sell 12.1 inch 60Hz LCD screen
Product Details:
| Place of Origin: | China |
| Brand Name: | CMO |
| Model Number: | N121IB-L06 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | N121IB-L06 | Diagonal Size: | 12.1" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1280(RGB)×800, WXGA 124PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 261.12(W)×163.2(H) Mm |
| Frame Rate: | 60Hz | Used For: | Laptop |
Product Description
N121IB-L06 1280*800 hot sell 12.1 inch 60Hz LCD screen
N121IB-L06 LCD Panel Product details :
| Brand | CMO |
| Model P/N | N121IB-L06 |
| Diagonal Size | 12.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×800, WXGA 124PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 261.12(W)×163.2(H) mm |
| Bezel Opening | 263.67(W)×165.75(H) mm |
| Outline Dim. | 275.8(W)×178(H)×5.3(D) mm |
| Luminance | 220 cd/m² (Typ.) |
| View Direction | 6 o'clock |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) |
| Support Color | 262K 40% NTSC |
| Form Style | Wedge (PCBA Bent, T≥5.2mm) |
| Frame Rate | 60Hz |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| Response Time | 3/7 (Typ.)(Tr/Td) |
| Operating Mode | TN, Normally White, Transmissive |
| Light Source | WLED [7S6P] , 12K hours , With LED Driver |
| Designed For | Laptop |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6-bit)40 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C |
N121IB-L06 LCD Panel Note :
Model Verification:
Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.
Comprehensive Testing:
We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.
N121IB-L06 LCD Panel Shipping and Package :
N121IB-L06 LCD Panel Shipping Guidelines:
Address Confirmation:
It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.
Shipment Timeline:
Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.
N121IB-L06 LCD Panel ESTIMATED DELIVERY TIME :
Standard Shipping:
The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.
Expedited Shipping:
For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.
N121IB-L06 LCD Panel FAQ :
Q: Can You declare my order of N121IB-L06 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of N121IB-L06 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long will I receive my goods N121IB-L06 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of N121IB-L06 ?
A: We accept T/T , Paypal , western union .
Want to Know more details about this product
