LCD Screen Display Panel

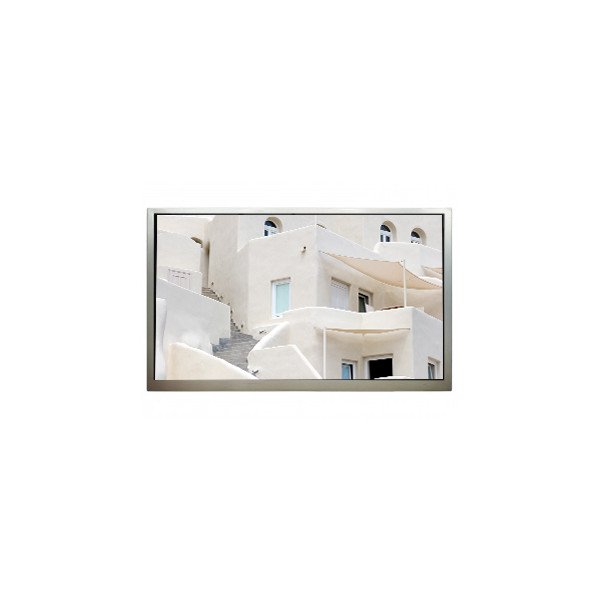

original 7.0 inch AT070TN82 V.1 LCD screen lcd Panel

All Category

Floor Standing Digital Signage

original 7.0 inch AT070TN82 V.1 LCD screen lcd Panel

Brand Name:	Innolux
Model Number:	AT070TN82 V.1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

AT070TN82 V.1

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×480, WVGA 133PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

152.4(W)×91.44(H) Mm

Color Depth:

Used For:

Automotive Display、Digital Photo Frame、Portable DVD Player、VOIP Phone、MP3 PMP

Supply Ability:

100000 Unit/Units per Month

Product Description

original 7.0 inch AT070TN82 V.1 LCD screen lcd Panel

AT070TN82 V.1 LCD Panel Product details :

Brand	Innolux
Model P/N	AT070TN82 V.1
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 133PPI
Pixel Format	RGB Vertical Stripe
Active Area	152.4(W)×91.44(H) mm
Bezel Opening	155.15(W)×94.20(H) mm
Outline(mm)	165 × 104× 6.3 (H×V×D)
Treatment	Antiglare
Luminance	250 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (TM)
Viewing Angle	70/70/50/70 (Typ.)(CR≥10)
Response	10/15 (Typ.)(Tr/Td) ms
Good View at	6 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	262K
Backlight	3S9PWLED, 20K hours, No Driver
Mass	170g (Typ.)
Used for	Automotive Display,Digital Photo Frame,Portable DVD Player,VOIP Phone,MP3 PMP
Refresh Rate	-
Touchscreen	Without
Signal Type	Parallel RGB (1 ch, 6-bit), 60 pinsFPC
Voltage Supply	3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)
Max. Ratings	Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C

AT070TN82 V.1 LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

AT070TN82 V.1 LCD Panel Shipping and Package :

original 7.0 inch AT070TN82 V.1 LCD screen lcd Panel 0

AT070TN82 V.1 LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

AT070TN82 V.1 LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

AT070TN82 V.1 LCD Panel FAQ :

Q: Do you accept sample orders of AT070TN82 V.1 ?

A: Of course! Sample order is welcome.

Q: Can I pay my order of AT070TN82 V.1 vai credit card?

A: Yes! You can use your credit card through your Paypal account.

Q: How long is the warranty ?

A: We offer 90 days warranty.

Q: If I place order now, when will you ship the goods of AT070TN82 V.1 ?

A: The order will be shipped within 2-3 working days after received your payment.
