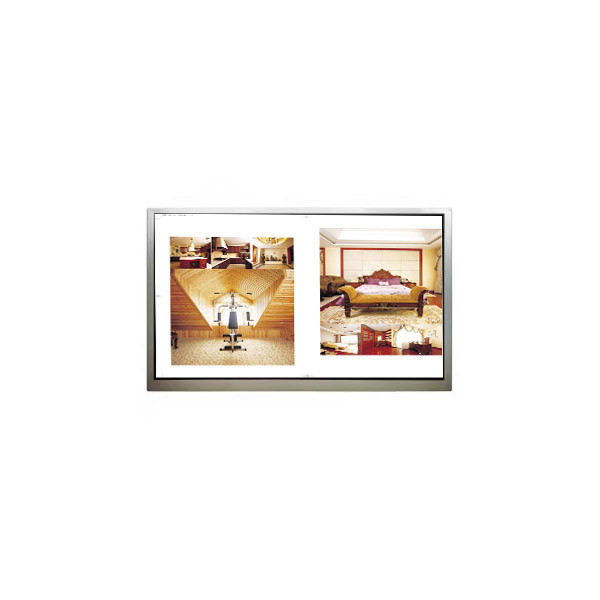

High Quality 1366*768 HSD156MGW1-A00 15.6 inch LCD screen Panel

Brand Name:	HannStar
Model Number:	HSD156MGW1-A00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

HSD156MGW1-A00

Diagonal Size:

15.6"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1366(RGB)×768, WXGA 100PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

344.232(W)×193.536(H) Mm

Frame Rate:

Used For:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

High Quality 1366*768 HSD156MGW1-A00 15.6 inch LCD screen Panel

HSD156MGW1-A00 LCD Panel Product details :

Brand	HannStar
Model P/N	HSD156MGW1-A00
Diagonal Size	15.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 100PPI
Pixel Format	RGB Vertical Stripe
Active Area	344.232(W)×193.536(H) mm
Bezel Opening	347.5(W)×196.8(H) mm
Outline(mm)	363.8(W)×215.9(H)×14.8(D)
Luminance	250 (Typ.)(cd/m²)
Viewing Angle	70/70/60/50 (Typ.)(CR≥10)
Good View at	-
Color Depth	16.7M 63% NTSC
Mass	1.30Kgs
Refresh Rate	60Hz
Treatment	Antiglare, Hard coating (3H)
Contrast Ratio	600 : 1 (Typ.) (TM)
Work Mode	TN, Normally White, Transmissive
Response	8 (Typ.)(Tr+Td) ms
Backlight	2 pcs CCFL , 50K hours , No Driver
Used for	Desktop Monitor
Touchscreen	Without
Signal Type	LVDS (1 ch, 8-bit), 30 pins Connector
Voltage Supply	5.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

HSD156MGW1-A00 LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

HSD156MGW1-A00 LCD Panel Shipping and Package :

High Quality 1366*768 HSD156MGW1-A00 15.6 inch LCD screen Panel 0

HSD156MGW1-A00 LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

HSD156MGW1-A00 LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

HSD156MGW1-A00 LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of HSD156MGW1-A00 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of HSD156MGW1-A00 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How to make payment of HSD156MGW1-A00 ?

A: We accept T/T , Paypal , western union .

Q: How long is the warranty ?

A: We offer 90 days warranty .
