HSD090IDW1-A00 9.0 inch 800*480 LCD screen Display New

Brand Name:	HannStar
Model Number:	HSD090IDW1-A00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

HSD090IDW1-A00

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×480, WVGA 104PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

198(W)×112.08(H) Mm

Frame Rate:

Used For:

Digital Photo Frame / Portable DVD Player

Supply Ability:

100000 Unit/Units per Month

Product Description

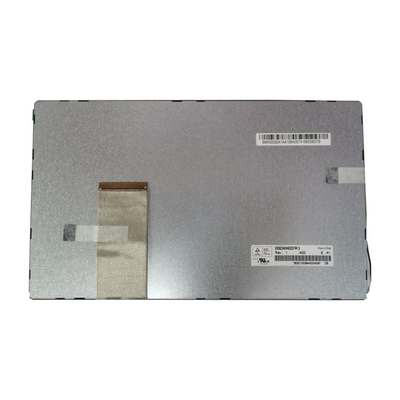

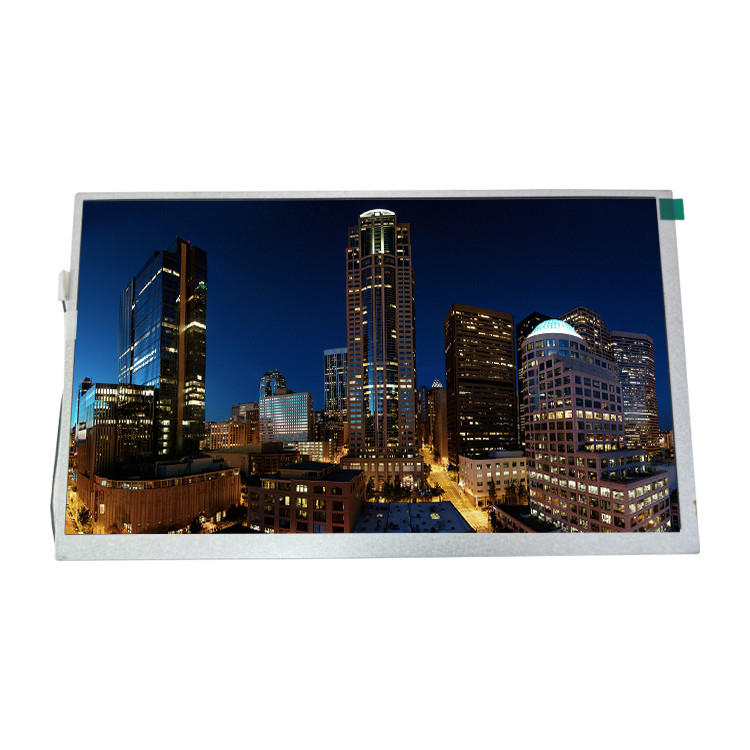

HSD090IDW1-A00 9.0 inch 800*480 LCD screen Display New

HSD090IDW1-A00 LCD Panel Product details :

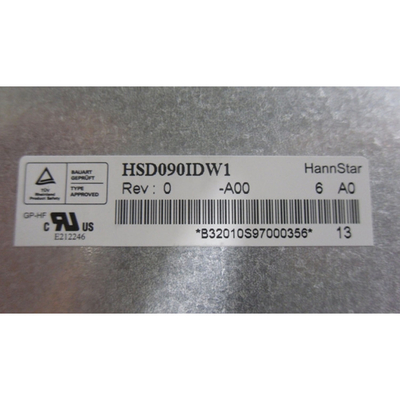

HannStar LCD Screen HSD090IDW1-A00
Panel Brand	HannStar
Model P/N	HSD090IDW1-A00
Diagonal Size	9.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 104PPI
Pixel Format	RGB Vertical Stripe
Active Area	198(W)×112.08(H) mm
Bezel Opening	201.1(W)×115.15(H) mm
Outline Dim.	210.7(H)×126.4(V) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	250 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	5.5/10.5 (Typ.)(Tr/Td)
Viewing Angle	70/70/50/60 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K/16.2M 47% NTSC
Light Source	WLED [3S7P] , 20K hours , W/O Driver
Weight	240g (Typ.)
Designed For	Digital Photo Frame / Portable DVD Player
Frame Rate	60Hz
Touch Panel	Without
Interface Type	TTL (1 ch, 6/8-bit) , 60 pins FPC
Power Supply	3.3/10/15/-7V (Typ.)(VCC/AVDD/VGH/VGL)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.9G (28.4 m/s²)
9.0 inch 800*480 HSD090IDW1-A00 LCD display screen panel for tablet PC

HSD090IDW1-A00 LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

HSD090IDW1-A00 LCD Panel Shipping and Package :

HSD090IDW1-A00 9.0 inch 800*480 LCD screen Display New 0

HSD090IDW1-A00 LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

HSD090IDW1-A00 LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

HSD090IDW1-A00 LCD Panel FAQ :

Q: Do you accept sample orders for HSD090IDW1-A00 ?

A: Of course!sample order is welcome !

Q: How long will I receive my goods of HSD090IDW1-A00 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: How to make payment for HSD090IDW1-A00 ?

A: We accept T/T , Paypal , western union .

Q: Can You declare my order of HSD090IDW1-A00 at a very low value ?

A: Yes , we can . pls inform us before shipping .
