LCD Screen Display Panel

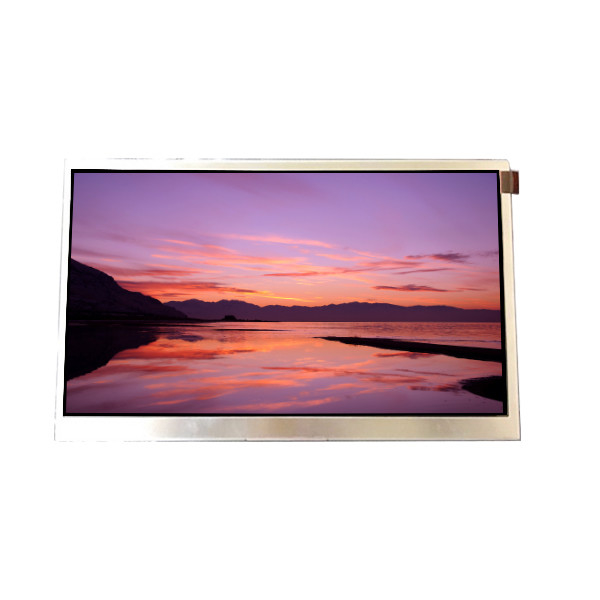

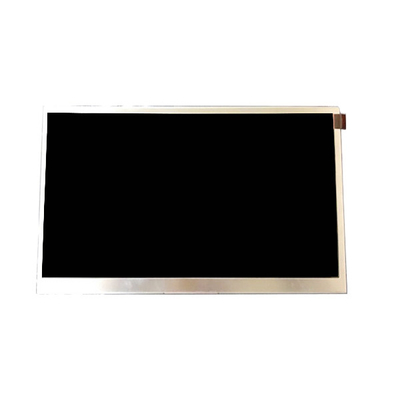

1024*600 10.1 inch HT101WSB-100 60Hz LCD screen Panel

All Category

Floor Standing Digital Signage

1024*600 10.1 inch HT101WSB-100 60Hz LCD screen Panel

Brand Name:	BOE
Model Number:	HT101WSB-100
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

HT101WSB-100

Diagonal Size:

10.1"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1024(RGB)×600, WSVGA 117PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

222.72(W)×125.28(H) Mm

Frame Rate:

Used For:

Netbook PC

Supply Ability:

100000 Unit/Units per Month

Product Description

1024*600 10.1 inch HT101WSB-100 60Hz LCD screen Panel

HT101WSB-100 LCD Panel Product details :

Brand	BOE
Model P/N	HT101WSB-100
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×600, WSVGA 117PPI
Pixel Format	RGB Vertical Stripe
Active Area	222.72(W)×125.28(H) mm
Bezel Opening	225.92(W)×128.48(H) mm
Outline Size	235(W)×143(H)×5.2(D) mm
Brightness	200 cd/m² (Typ.)
Viewing Angle	45/45/15/35 (Typ.)(CR≥10)
Best View on	6 o'clock
Display Colors	262K 50%NTSC
Frequency	60Hz
Shape Style	Wedge (PCBA Bent, T≥5.2mm)
Surface	Glare (Haze 0%), Hard coating (3H)
Contrast Ratio	500:1 (Typ.) (TM)
Display Mode	TN, Normally White, Transmissive
Response Time	8 (Typ.)(Tr+Td)
Lamp Type	WLED , 10K hours , With LED Driver
Touch Screen	Without
Application	Netbook PC
Signal Interface	LVDS (1 ch, 6-bit), 40 pinsConnector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C

HT101WSB-100 LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

HT101WSB-100 LCD Panel Shipping and Package :

1024*600 10.1 inch HT101WSB-100 60Hz LCD screen Panel 0

HT101WSB-100 LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

HT101WSB-100 LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

HT101WSB-100 LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of HT101WSB-100 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of HT101WSB-100 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How to make payment of HT101WSB-100 ?

A: We accept T/T , Paypal , western union .

Q: How long is the warranty ?

A: We offer 90 days warranty .
