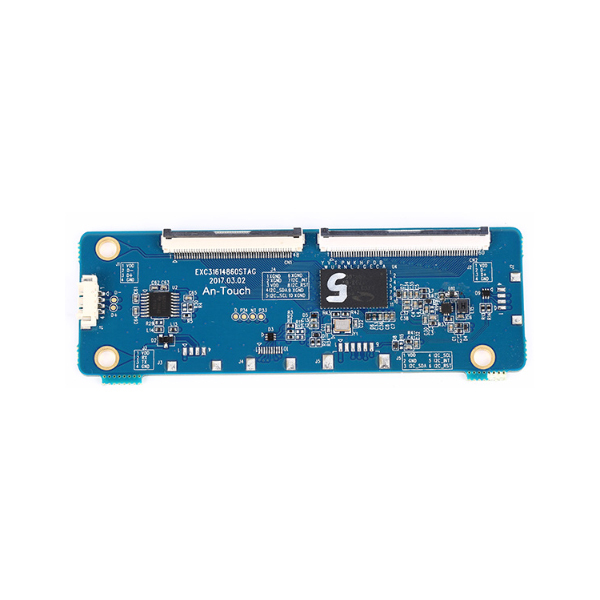

Name: Capacitive touch screen controller circuit board
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: EETI-3146
Availability: InStock

Brand Name:	YONGS
Model Number:	EETI-3146
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

EETI-3146

Outline Dimension:

W: 30mm, L: 90mm

Support Touch Panel Size:

Suggestion: 13.3” ~ 21.5”

Driving Channels:

Max:35 Channels

Sensing Channels:

Max:44 Channels

Host Interface:

USB/IIC/RS232

IC Chip:

EETI 3161

Input Supply Voltage:

USB: 4.4V ~ 5.5V, Typical:5V

Supply Ability:

100000 Unit/Units per Month

Product Description

Capacitive Touch Screen Controller Circuit Board

Product Specifications

Attribute	Value
Model Name	EETI-3146
Outline Dimension	W: 30mm, L: 90mm
Support Touch Panel Size	Suggestion: 13.3" ~ 21.5"
Driving Channels	Max: 35 channels
Sensing Channels	Max: 44 channels
Host Interface	USB/IIC/RS232
IC Chip	EETI 3161
Input Supply Voltage	USB: 4.4V ~ 5.5V, Typical: 5V

Product Details

Outline Dimension	W: 30mm, L: 90mm
Support Touch Panel Size	Suggestion: 13.3" ~ 21.5"
Driving Channels	Max: 35 channels
Sensing Channels	Max: 44 channels
Host Interface	USB/IIC/RS232
IC Chip	EETI 3161
Input Supply Voltage	USB: 4.4V ~ 5.5V, Typical: 5V
Operating Temperature	-40 ~ 85℃
Storage Temperature	-40 ~ 150℃
Touch Coordinate Resolution	16384 X 9600

Product Description

Product Application

Shipping and Package

Return Policy

The Buyer must notify the seller of all returned items within 7 days after receiving the package. We reserve the right to refuse any requirement that informs the seller longer than 7 days.
Exchange due to buyer wrong part ordered requires buyer to pay 2-way shipping fee.
Return items must have all original packaging and be in good condition.
Return postage and insurance charges are non-refundable for refund or new shipment.
Shipping fees are non-refundable.

Frequently Asked Questions

Q: What kind of payment method do you accept?

A: We accept payment by T/T, PayPal, Western Union, Alibaba.

Q: What is your sample policy?

A: We only offer free samples to cooperated customers. Your payment for samples could be deducted from your next bulk order.

Q: What is your warranty policy?

A: We have 1/2/3 years warranty for different kinds of products.

Q: What is the MOQ limit for each order?

A: We do not have MOQ limitation. Sample orders are acceptable, but different quantities result in different prices.

Q: When will the order be shipped?

A: Generally orders could be shipped in 3-7 business days after we receive full payment.
