Name: Resistive Capacitive Touch Panel USB Driver Controller
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: ILITEK 2511
Availability: InStock

Brand Name:	YONGS
Model Number:	ILITEK 2511
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

ILITEK 2511

Outline Dimension:

W: 28.85mm, L: 41mm

Driving Channels:

Max:23 Channels

Sensing Channels:

Max:41 Channels

Host Interface:

USB/IIC/RS232

IC Chip:

ILITEK 2511

Input Supply Voltage:

USB: 4.4V ~ 5.5V, Typical:5V

Operating Temperature:

-40 ~ 85℃

Supply Ability:

100000 Unit/Units per Month

Product Description

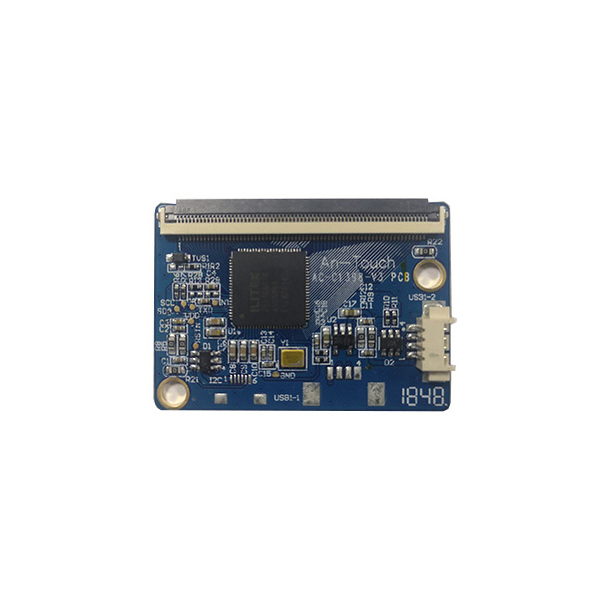

Resistive Capacitive Touch Panel USB Driver Controller

Product Specifications

Attribute	Value
Model Name	ILITEK 2511
Outline Dimension	W: 28.85mm, L: 41mm
Driving Channels	Max: 23 channels
Sensing Channels	Max: 41 channels
Host Interface	USB/IIC/RS232
IC Chip	ILITEK 2511
Input Supply Voltage	USB: 4.4V ~ 5.5V, Typical:5V
Operating Temperature	-40 ~ 85℃

Product Details

Support Touch Panel Size	Suggestion: 7" ~ 17.0"
Storage Temperature	-40 ~ 150℃
Touch Coordinate Resolution	16384 X 9600
