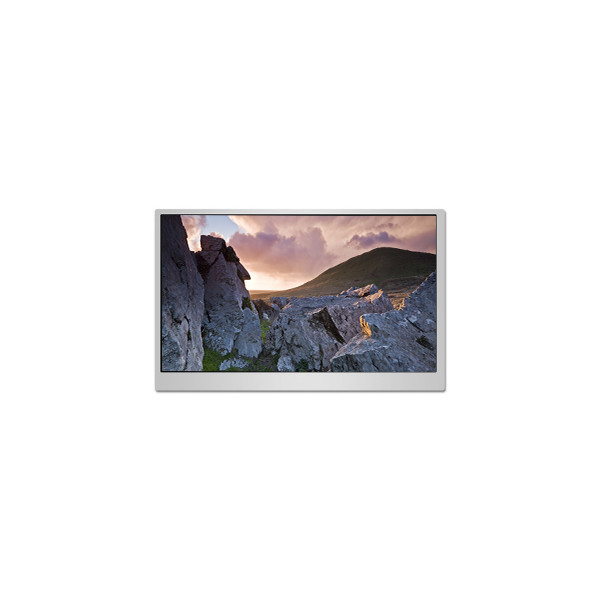

3000*2120 PPC100HB1-1 12.1 inch LCD screen module Display
Product Details:
| Place of Origin: | China |
| Brand Name: | CSOT |
| Model Number: | PPC100HB1-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | PPC100HB1-1 | Diagonal Size: | 12.1" |
|---|---|---|---|
| Panel Type: | LTPS TFT-LCD, Assembly | Resolution: | 3000(RGB)×2120 303PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 250.83(W)×177.253(H) Mm |
| Frame Rate: | 144Hz | Used For: | Industrial ，Healthcare |
Product Description
3000*2120 PPC100HB1-1 12.1 inch LCD screen module Display
PPC100HB1-1 LCD Panel Product details :
| Brand | CSOT |
| Model P/N | PPC100HB1-1 |
| Diagonal Size | 12.1" |
| Panel Type | LTPS TFT-LCD, Assembly |
| Resolution | 3000(RGB)×2120 303PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 250.83(W)×177.253(H) mm |
| Bezel Opening | - |
| Outline Dim. | 264.33(W)×190.75(H) mm |
| Treatment | Reflection 6.0% (Max.) |
| Luminance | 600 cd/m² (Typ.) |
| Contrast Ratio | 1400:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 27 (Max.)(G to G) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Operating Mode | - |
| Support Color | 16.7M 99% DCI-P3 |
| Light Source | 9S8P WLED , Without Driver |
| Panel Weight | TBD |
| Designed For | Industrial ,Healthcare |
| Frame Rate | 144Hz |
| Touch Panel | In-Cell Touch, SPI |
| Signal Interface | MIPI (2 ch, 4 data lanes) , 72 pins Connector |
| Input Voltage | (1.9/1.95)/5.9/-5.9V (Typ.)(VDDI/AVDD/AVEE) |
| Environment | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
PPC100HB1-1 LCD Panel Note :
Model Verification:
Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.
Comprehensive Testing:
We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.
PPC100HB1-1 LCD Panel Shipping and Package :
PPC100HB1-1 LCD Panel Shipping Guidelines:
Address Confirmation:
It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.
Shipment Timeline:
Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.
PPC100HB1-1 LCD Panel ESTIMATED DELIVERY TIME :
Standard Shipping:
The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.
Expedited Shipping:
For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.
PPC100HB1-1 LCD Panel FAQ :
Q: How do you ship my goods PPC100HB1-1 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of PPC100HB1-1 ?
A: 90days warranty .
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of LCD panel PPC100HB1-1 at a very low value ?
A: Yes , we can . pls inform us before shipping .
