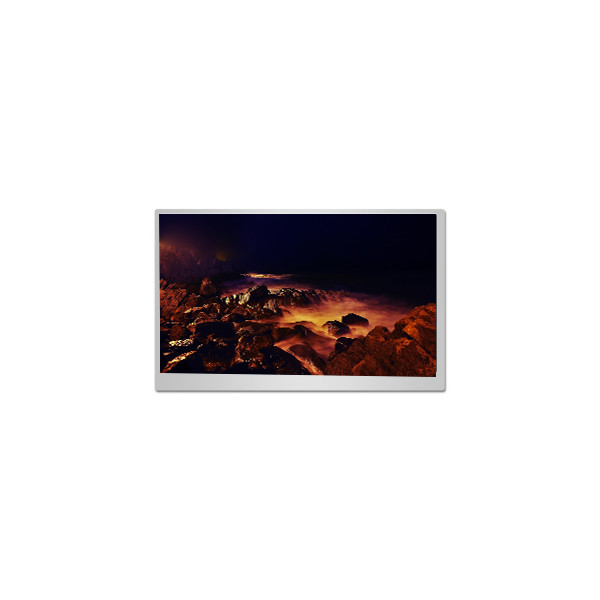

PN270EU01-1 27.0 inch LCD Module screen for Desktop Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | HKC |
| Model Number: | PN270EU01-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | PN270EU01-1 | Diagonal Size: | 27" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOB | Resolution: | 2560(RGB)×1440, Quad-HD 108PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 596.736(W)×335.664(H) Mm |
| Frame Rate: | 165Hz | Used For: | Desktop Monitor |
Product Description
PN270EU01-1 27.0 inch LCD Module screen for Desktop Monitor
PN270EU01-1 LCD Panel Product details :
| Brand | HKC |
| Model P/N | PN270EU01-1 |
| Diagonal Size | 27.0" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 2560(RGB)×1440, Quad-HD 108PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 596.736(W)×335.664(H) mm |
| Bezel Opening | - |
| Outline(mm) | 608.596 × 348.12× 1.06 (H×V×D) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 4000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 12 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | FSA, Normally Black, Transmissive |
| Glass Thickness | 0.38+0.38 mm |
| Transmissivity | 3.9% (Typ.) |
| Color Depth | 16.7M 72%NTSC |
| Backlight | No B/L |
| Mass | 519g (Typ.) |
| Used for | Desktop Monitor |
| Refresh Rate | 165Hz |
| Touchscreen | Without |
| Driver IC list | Built-in COF 8 source chips |
| Signal Type | eDP (4 Lanes), 51 pinsConnector |
| Voltage Supply | 12V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| PN270EU01-1 27.0 inch LCD Module screen for Desktop Monitor | |
PN270EU01-1 LCD Panel Shipping and Package :
PN270EU01-1 LCD Panel FAQ :
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
