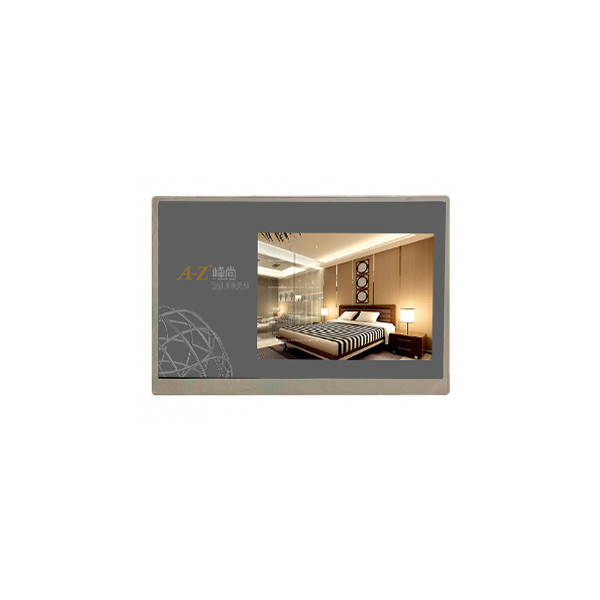

PC860GS01-3 86.0 inch 3840*2160 LCD Panel for Interactive Whiteboard
Product Details:
| Place of Origin: | China |
| Brand Name: | HKC |
| Model Number: | PC860GS01-3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | PC860GS01-3 | Diagonal Size: | 86" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL | Resolution: | 3840(RGB)×2160, UHD 51PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 1895.04(W)×1065.96(H) Mm |
| Used For: | Digital Signage、Interactive Whiteboard | Touch Screen: | Without |
Product Description
PC860GS01-3 86.0 inch 3840*2160 LCD Panel for Interactive Whiteboard
PC860GS01-3 LCD Panel Product details :
| Brand | HKC |
| Model P/N | PC860GS01-3 |
| Diagonal Size | 86" |
| Panel Type | a-Si TFT-LCD, CELL |
| Resolution | 3840(RGB)×2160, UHD 51PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 1895.04(W)×1065.96(H) mm |
| Bezel Opening | - |
| Outline Dim. | 1913.1(W)×1084(H) mm |
| Luminance | 0 cd/m² |
| View Direction | Symmetry |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Plate Thickness | - |
| Support Color | 1.07B |
| Weight | 5.50Kgs (Typ.) |
| Frame Rate | 60Hz |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Contrast Ratio | 1200:1 (Typ.) (TM) |
| Response Time | 8 (Typ.)(G to G) |
| Operating Mode | HIS, Normally Black, Transmissive |
| Transmittance | 5.11% (Typ.) |
| Light Source | No B/L |
| Designed For | Digital Signage,Interactive Whiteboard |
| Touch Panel | Without |
| D-IC Detail | COF Built-in 16 source chips |
| Interface Type | V-by-One 8 lane56 pins Connector |
| Power Supply | 12.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C |
| PC860GS01-3 86.0 inch 3840*2160 LCD Panel for Interactive Whiteboard | |
PC860GS01-3 LCD Panel Shipping and Package :
PC860GS01-3 LCD Panel FAQ :
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: When will my order PC860GS01-3 ship?
A: The order are shipped within 1-2 working days after received the payment.
Q: Are you manufactory or trade company?
A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: What happen if the lcd panel PC860GS01-3 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
