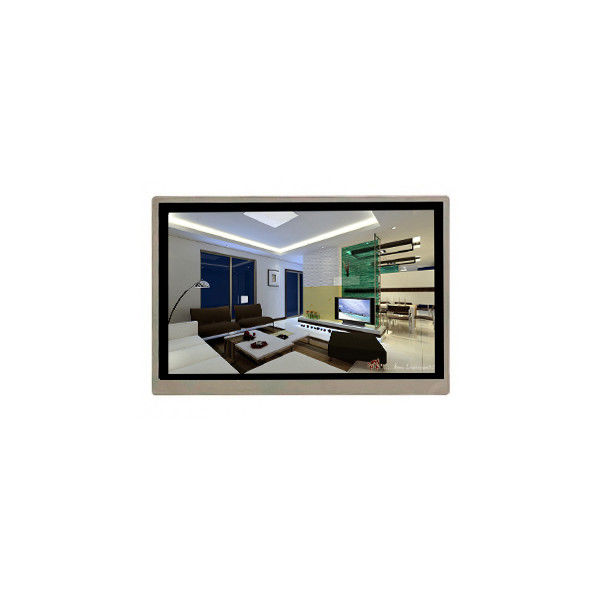

46.6 inch PC466KT01-1 3840*120 51 pins LCD Panel High Quality
Product Details:
| Place of Origin: | China |
| Brand Name: | HKC |
| Model Number: | PC466KT01-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | PC466KT01-1 | Diagonal Size: | 46.6" (Native Bar) |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL | Resolution: | 3840×120(RGB) 82PPI |
| Pixel Format: | RGB Horizontal Stripe | Active Area: | 1183.68(W)×36.99(H) Mm |
| Used For: | Digital Signage、Stretched Bar LCD | Touch Screen: | Without |
Product Description
46.6 inch PC466KT01-1 3840*120 51 pins LCD Panel High Quality
PC466KT01-1 LCD Panel Product details :
| Brand | HKC |
| Model P/N | PC466KT01-1 |
| Diagonal Size | 46.6" (Native bar) |
| Panel Type | a-Si TFT-LCD, CELL |
| Resolution | 3840×120(RGB) 82PPI |
| Pixel Format | RGB Horizontal Stripe |
| Active Area | 1183.68(W)×36.99(H) mm |
| Bezel Opening | - |
| Outline Size | 1195.08(W)×43.99(H)×1.33(D) mm |
| Brightness | 0 cd/m² |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Glass Depth | 0.50+0.50 mm |
| Display Colors | 1.07B 72%NTSC |
| Frequency | 60Hz |
| Weight | 181g (Typ.) |
| Surface | Antiglare (Haze 3%), Hard coating (3H) |
| Contrast Ratio | 3000:1 (Typ.) (TM) |
| Display Mode | FSA, Normally Black, Transmissive |
| Response Time | 9.5 (Typ.)(G to G) |
| Transmissivity | 5.0% (Typ.)(with Polarizer) |
| Lamp Type | No B/L |
| Touch Screen | Without |
| Application | Digital Signage,Stretched Bar LCD |
| Signal Interface | V-by-One 8 lane, 51 pinsConnector |
| Input Voltage | 12V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
| 46.6 inch PC466KT01-1 3840*120 51 pins LCD Panel High Quality | |
PC466KT01-1 LCD Panel Shipping and Package :
PC466KT01-1 LCD Panel FAQ :
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: Are you manufactory or trade company?
A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: What happen if the lcd panel PC466KT01-1 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: When will my order PC466KT01-1 ship?
A: The order are shipped within 1-2 working days after received the payment.
