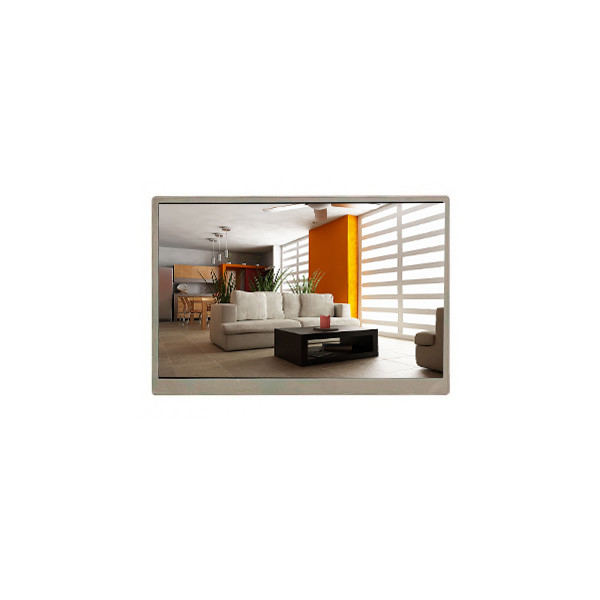

in stock 1880*120 23.0 inch PC230KT01-1 LCD screen lcd Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | HKC |
| Model Number: | PC230KT01-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | PC230KT01-1 | Diagonal Size: | 23.0" (Native Bar) |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOB | Resolution: | 1880×120(RGB) 82PPI |
| Pixel Format: | RGB Horizontal Stripe | Active Area: | 579.51(W)×36.99(H) Mm |
| Used For: | Digital Signage、Stretched Bar LCD | Touch Screen: | Without |
Product Description
in stock 1880*120 23.0 inch PC230KT01-1 LCD screen lcd Panel
PC230KT01-1 LCD Panel Product details :
| Brand | HKC |
| Model P/N | PC230KT01-1 |
| Diagonal Size | 23.0" (Native bar) |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1880×120(RGB) 82PPI |
| Pixel Format | RGB Horizontal Stripe |
| Active Area | 579.51(W)×36.99(H) mm |
| Bezel Opening | - |
| Outline Dim. | 590.91(H)×43.99(V)×1.33(D) mm |
| Treatment | Antiglare (Haze 3%), Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 3000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 5 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | FSA, Normally Black |
| Plate Thickness | 0.50+0.50 mm |
| Transmittance | 5.0% (Typ.)(with Polarizer) |
| Support Color | 16.7M 68%NTSC |
| Light Source | No B/L |
| Weight | TBD |
| Designed For | Digital Signage,Stretched Bar LCD |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| D-IC Detail | COF Built-in 1 chips |
| Interface Type | LVDS (2 ch, 8-bit), 51 pinsConnector |
| Power Supply | 12.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C |
| in stock 1880*120 23.0 inch PC230KT01-1 LCD screen lcd Panel | |
PC230KT01-1 LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
PC230KT01-1 LCD Panel Shipping and Package :
PC230KT01-1 LCD Display Shipping Policy :
Shipping Method:
If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.
Specified Logistics:
If you require a specific logistics company, please inform us in advance.
PC230KT01-1 LCD Display Return Policy :
Product Status:
The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:
If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:
When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.
PC230KT01-1 LCD Panel FAQ :
Q: Do you accept sample orders of PC230KT01-1 ?
A: Of course!sample order is welcome !
Q: How can I trace my order of PC230KT01-1 ?
A: we will give you tracking number then you can trace your order from website.
Q: If I place order now,when will you ship the goods of PC230KT01-1 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can you give me a discount if I need a large quantity of PC230KT01-1 ?
A: Of course!If you make a large order, we will give you a discount.
