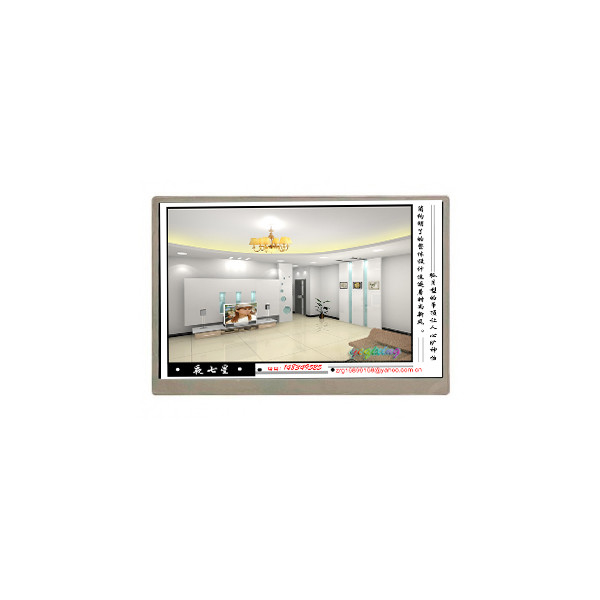

Name: original 15.6 inch PC156CS03-3 1920*1080 LCD screen Module
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: PC156CS03-3
Availability: InStock

Brand Name:	HKC
Model Number:	PC156CS03-3
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

PC156CS03-3

Diagonal Size:

15.6"

Panel Type:

A-Si TFT-LCD, CELL, FOB

Resolution:

1920(RGB)×1080, FHD 141PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

344.16(W)×193.59(H) Mm

Used For:

Laptop

Touch Screen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

original 15.6 inch PC156CS03-3 1920*1080 LCD screen Module

PC156CS03-3 LCD Panel Product details :

Brand	HKC
Model P/N	PC156CS03-3
Diagonal Size	15.6"
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	1920(RGB)×1080, FHD 141PPI
Pixel Format	RGB Vertical Stripe
Active Area	344.16(W)×193.59(H) mm
Bezel Opening	-
Outline Size	348.76(W)×202.49(H)×1.06(D) mm
Brightness	0 cd/m²
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Best View on	Symmetry
Glass Depth	0.40+0.40 mm
Display Colors	262K 60%NTSC
Frequency	60Hz
Shape Style	-
Surface	Antiglare, Hard coating (3H)
Contrast Ratio	600:1 (Typ.) (TM)
Display Mode	HIS, Normally Black, Transmissive
Response Time	30 (Typ.)(G to G)
Transmissivity	4.9% (Typ.)(with Polarizer)
Lamp Type	No B/L
Touch Screen	Without
Application	Laptop
Driver IC	COGBuilt-in 4 source chips
Signal Interface	eDP (2 Lanes), eDP1.2 , HBR1 (2.7G/lane) , 30 pinsConnector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
original 15.6 inch PC156CS03-3 1920*1080 LCD screen Module

PC156CS03-3 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

PC156CS03-3 LCD Panel Shipping and Package :

original 15.6 inch PC156CS03-3 1920*1080 LCD screen Module 0

PC156CS03-3 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

PC156CS03-3 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

PC156CS03-3 LCD Panel FAQ :

Q: If I place order now,when will you ship the goods of PC156CS03-3 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can you give me a discount if I need a large quantity of PC156CS03-3 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of PC156CS03-3 ?

A: we will give you tracking number then you can trace your order from website.

Q: Do you accept sample orders of PC156CS03-3 ?

A: Of course!sample order is welcome !
