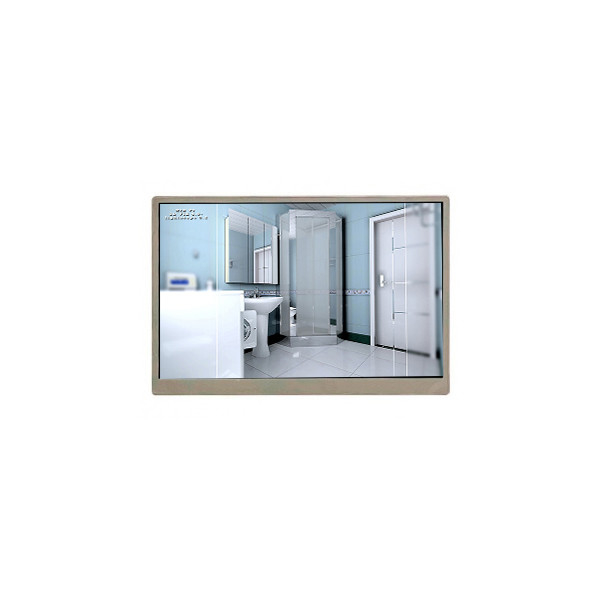

PB160DS01-1 16.0 inch 1920*1200 60Hz 1000:1 LCD display
Product Details:
| Place of Origin: | China |
| Brand Name: | HKC |
| Model Number: | PB160DS01-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | PB160DS01-1 | Diagonal Size: | 16.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOB | Resolution: | 1920(RGB)×1200, WUXGA 141PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 344.68(W)×215.42(H) Mm |
| Used For: | Laptop | Touch Screen: | Without |
Product Description
PB160DS01-1 16.0 inch 1920*1200 60Hz 1000:1 LCD display
PB160DS01-1 LCD Panel Product details :
| Brand | HKC |
| Model P/N | PB160DS01-1 |
| Diagonal Size | 16.0" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1920(RGB)×1200, WUXGA 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 344.68(W)×215.42(H) mm |
| Bezel Opening | - |
| Outline Dim. | 349.178(H)×223.674(V)×1.06(D) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | HIS, Normally Black, Transmissive |
| Plate Thickness | 0.40+0.40 mm |
| Transmittance | 6.5% (Typ.)(with Polarizer) |
| Support Color | 16.7M 45%NTSC |
| Light Source | No B/L, With LED Driver |
| Form Style | - |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| D-IC Detail | COG Built-in 4 source chips |
| Interface Type | eDP (2 Lanes), eDP1.2 , HBR1 (2.7G/lane) , 30 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| PB160DS01-1 16.0 inch 1920*1200 60Hz 1000:1 LCD display | |
PB160DS01-1 LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
PB160DS01-1 LCD Panel Shipping and Package :
PB160DS01-1 LCD Display Shipping Policy :
Shipping Method:
If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.
Specified Logistics:
If you require a specific logistics company, please inform us in advance.
PB160DS01-1 LCD Display Return Policy :
Product Status:
The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:
If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:
When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.
PB160DS01-1 LCD Panel FAQ :
Q: If I place order now,when will you ship the goods of PB160DS01-1 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can you give me a discount if I need a large quantity of PB160DS01-1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of PB160DS01-1 ?
A: we will give you tracking number then you can trace your order from website.
Q: Do you accept sample orders of PB160DS01-1 ?
A: Of course!sample order is welcome !
Want to Know more details about this product
