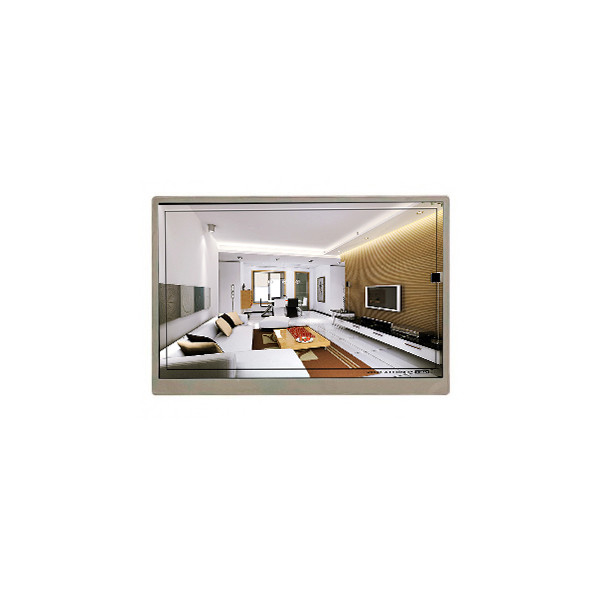

MB156AN01-4 15.6 inch 1366*768 LCD Panel screen for Laptop
Product Details:
| Place of Origin: | China |
| Brand Name: | HKC |
| Model Number: | MB156AN01-4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | MB156AN01-4 | Diagonal Size: | 15.6" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1366(RGB)×768, WXGA 100PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 344.232(W)×193.536(H) Mm |
| Used For: | Laptop | Touch Screen: | Without |
Product Description
MB156AN01-4 15.6 inch 1366*768 LCD Panel screen for Laptop
MB156AN01-4 LCD Panel Product details :
| Brand | HKC |
| Model P/N | MB156AN01-4 |
| Diagonal Size | 15.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 100PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 344.232(W)×193.536(H) mm |
| Bezel Opening | - |
| Outline Dim. | 350.66(W)×216.15(H)×3.2(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | - |
| Response Time | 12 (Typ.)(G to G) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.2M 45% |
| Light Source | WLED, 15K hours, With LED Driver |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (1 Lane), eDP1.2, 30 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| MB156AN01-4 15.6 inch 1366*768 LCD Panel screen for Laptop | |
MB156AN01-4 LCD Panel Shipping and Package :
MB156AN01-4 LCD Panel FAQ :
Q: What happen if the lcd panel MB156AN01-4 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
