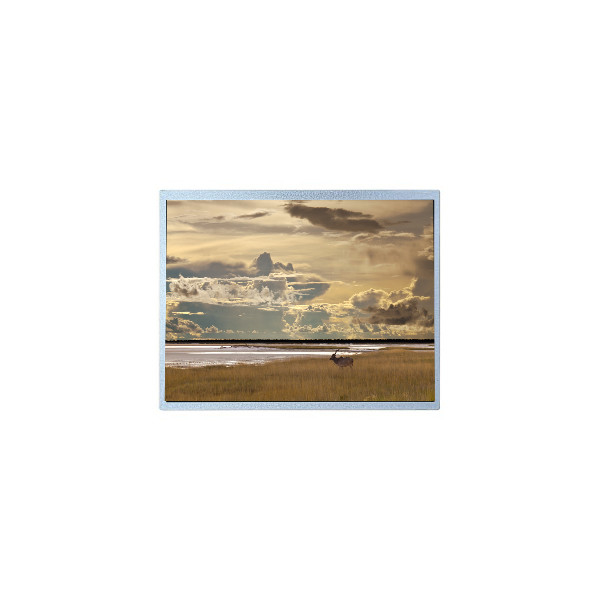

High Quality 43.0 inch P430HVN06.1 1920*1080 LVDS LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | P430HVN06.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | P430HVN06.1 | Diagonal Size: | 43.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 51PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 940.896(W)×529.254(H) Mm |
| Used For: | Digital Signage、Outdoor High Brightness | Touchscreen: | Without |
Product Description
High Quality 43.0 inch P430HVN06.1 1920*1080 LVDS LCD Screen
P430HVN06.1 LCD Panel Product details :
| Brand | AUO |
| Model P/N | P430HVN06.1 |
| Diagonal Size | 43" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 51PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 940.896(W)×529.254(H) mm |
| Bezel Opening | 943.9(W)×532.25(H) mm |
| Outline (mm) | 968.7×557.05×68.3 (H×V×D) |
| Treatment | Antiglare (Haze 28%), Hard coating (3H) |
| Luminance | 2500 cd/m² (Typ.) |
| Contrast Ratio | 4000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 8 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | AMVA3, Normally Black, Transmissive |
| Color Depth | 16.7M 50%NTSC |
| Backlight | WLED, 50K hours, With LED Driver |
| Mass | 8.50Kgs (Typ.) |
| Used for | Digital Signage,Outdoor High Brightness |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit), Connector51 pins |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: -20 ~ 60 °C |
| High Quality 43.0 inch P430HVN06.1 1920*1080 LVDS LCD Screen | |
P430HVN06.1 LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
P430HVN06.1 LCD Panel Shipping and Package :
P430HVN06.1 LCD Display Shipping Policy :
Shipping Method:
If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.
Specified Logistics:
If you require a specific logistics company, please inform us in advance.
P430HVN06.1 LCD Display Return Policy :
Product Status:
The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:
If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:
When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.
P430HVN06.1 LCD Panel FAQ :
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How long will I receive my goods P430HVN06.1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of P430HVN06.1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of P430HVN06.1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
