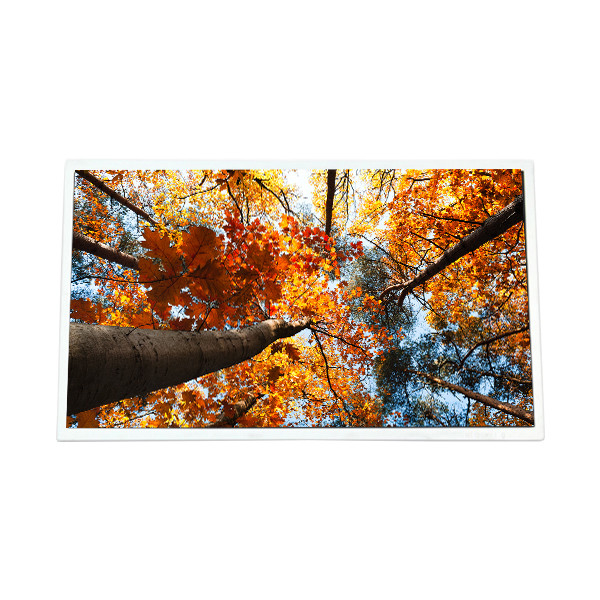

G104STN01.6 10.4 inch 800*600 LVDS LCD screen for Industrial

Brand Name:	AUO
Model Number:	G104STN01.6
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

G104STN01.6

Diagonal Size:

10.4"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×600, SVGA 96PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

211.2(W)×158.4(H) Mm

Frequency:

Industrial、Outdoor High Brightness

Interface Type:

Supply Ability:

100000 Unit/Units per Month

Product Description

G104STN01.6 10.4 inch 800*600 LVDS LCD screen for Industrial

G104STN01.6 LCD Panel Product details :

Brand	AUO
Model P/N	G104STN01.6
Diagonal Size	10.4"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×600, SVGA 96PPI
Pixel Format	RGB Vertical Stripe
Active Area	211.2(W)×158.4(H) mm
Bezel Opening	215.4(W)×161.9(H) mm
Outline Dim.	227.3(H)×177.5(V)×9.3(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	700 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
View Direction	-
Response Time	10/5 (Typ.)(Tr/Td)
Viewing Angle	80/80/60/70 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K/16.2M 50%NTSC
Light Source	WLED [6S3P], 50K hours, With LED Driver
Weight	294g (Typ.)
Designed For	Industrial,Outdoor High Brightness
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 6/8-bit), 20 pinsConnector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C
