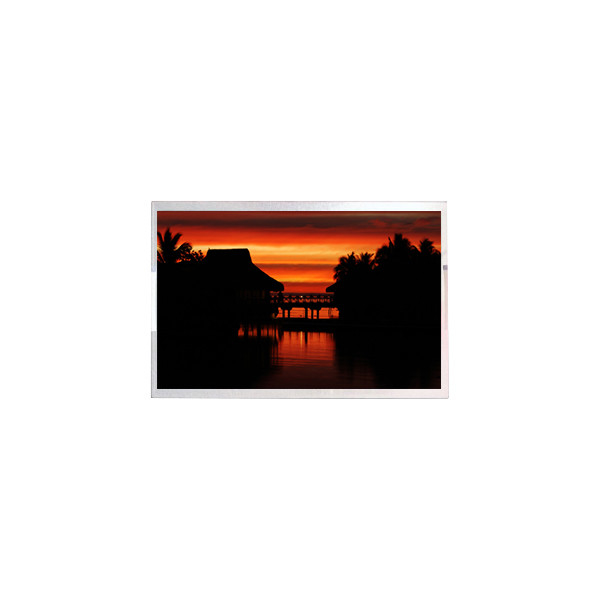

TCG084SVLAFCNN-GN23 8.4 inch 800*600 LCD Monitor lcd screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | TCG084SVLAFCNN-GN23 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TCG084SVLAFCNN-GN23 | Diagonal Size: | 8.4" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×600, SVGA 119PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 170.4(W)×127.8(H) Mm |
| Light Source: | WLED , 100K Hours , With LED Driver | Designed For: | Industrial |
| Response Time: | 18/12 (Typ.)(Tr/Td) | Operating Mode: | AWV, Normally Black, Transmissive |
Product Description
TCG084SVLAFCNN-GN23 8.4 inch 800*600 LCD Monitor lcd screen
TCG084SVLAFCNN-GN23 LCD Panel Product details :
| Brand | Kyocera |
| Model P/N | TCG084SVLAFCNN-GN23 |
| Diagonal Size | 8.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA 119PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 170.4(W)×127.8(H) mm |
| Bezel Opening | 174.4(W)×131.8(H) mm |
| Outline Dim. | 199.5(W)×147.4(H) ×9.5(D) mm |
| Treatment | Glare (Haze 0%) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 18/12 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | AWV, Normally Black, Transmissive |
| Support Color | 16.7M 49% NTSC |
| Light Source | WLED , 100K hours , With LED Driver |
| Weight | 315g |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6/8-bit) , 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
TCG084SVLAFCNN-GN23 LCD Display About Us :
Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.
Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.
Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.
TCG084SVLAFCNN-GN23 LCD Display Product Details :
Condition:
Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.
Order Guidance:
If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.
Product Authenticity:
The LCD screens are original and are thoroughly tested before being sent to you.
TCG084SVLAFCNN-GN23 LCD Display Friendly Reminder :
- Installation Guide:
- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.
- Professional Installation Recommended:
- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.
- Disassembly Knowledge:
- Make sure you understand the disassembly procedure before making a purchase.
- Return Policy:
- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.
TCG084SVLAFCNN-GN23 LCD Panel Shipping and Package :
TCG084SVLAFCNN-GN23 LCD Panel FAQ :
Q: How can I trace my order of TCG084SVLAFCNN-GN23 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of TCG084SVLAFCNN-GN23 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of TCG084SVLAFCNN-GN23 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods TCG084SVLAFCNN-GN23 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
