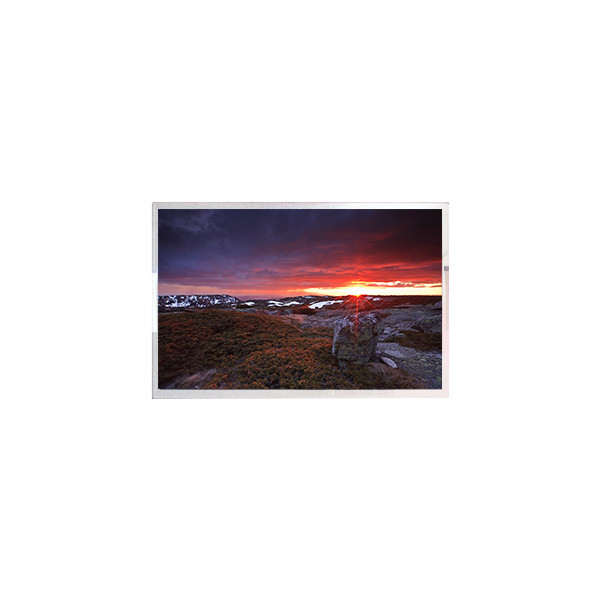

TFT3P7533-E 8.4 inch lcd screen lcd Module for Automotive Display
Product Details:
| Place of Origin: | China |
| Brand Name: | TRULY |
| Model Number: | TFT3P7533-E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TFT3P7533-E | Diagonal Size: | 8.4" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 768×1024(RGB), XGA 152PPI |
| Pixel Format: | RGB Horizontal Stripe | Active Area: | 127.872(W)×170.496(H) Mm |
| Refresh Rate: | 60Hz | Designed For: | Outdoor High Brightness /Automotive Display |
| Interface Type: | LVDS (1 Ch, 8-bit) , 20 Pins Connector | Power Supply: | 3.3V (Typ.) |
Product Description
TFT3P7533-E 8.4 inch lcd screen lcd Module for Automotive Display
TFT3P7533-E LCD Panel Product details :
| Brand | TRULY |
| Model P/N | TFT3P7533-E |
| Diagonal Size | 8.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 768×1024(RGB), XGA 152PPI |
| Pixel Format | RGB Horizontal Stripe |
| Active Area | 127.872(W)×170.496(H) mm |
| Bezel Opening | - |
| Outline Dim. | 142.48 × 185.5 × 9.57 (H×V×D) |
| Treatment | - |
| Luminance | 700 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) ms |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Support Color | 16.7M 73% DCI-P3 |
| Light Source | 8S3P WLED , With LED Driver |
| Weight | - |
| Designed For | Outdoor High Brightness /Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 8-bit) , 20 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
TFT3P7533-E LCD Display About Us :
Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.
Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.
Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.
TFT3P7533-E LCD Display Product Details :
Condition:
Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.
Order Guidance:
If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.
Product Authenticity:
The LCD screens are original and are thoroughly tested before being sent to you.
TFT3P7533-E LCD Display Friendly Reminder :
- Installation Guide:
- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.
- Professional Installation Recommended:
- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.
- Disassembly Knowledge:
- Make sure you understand the disassembly procedure before making a purchase.
- Return Policy:
- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.
TFT3P7533-E LCD Panel Shipping and Package :
TFT3P7533-E LCD Panel FAQ :
Q: Can You declare my order of TFT3P7533-E to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of TFT3P7533-E?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of TFT3P7533-E via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods TFT3P7533-E?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Want to Know more details about this product
