Brand Name: | JDI |
Model Number: | LPM013M461B |
MOQ: | 1 pcs |
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Payment Terms: | T/T, Western Union |

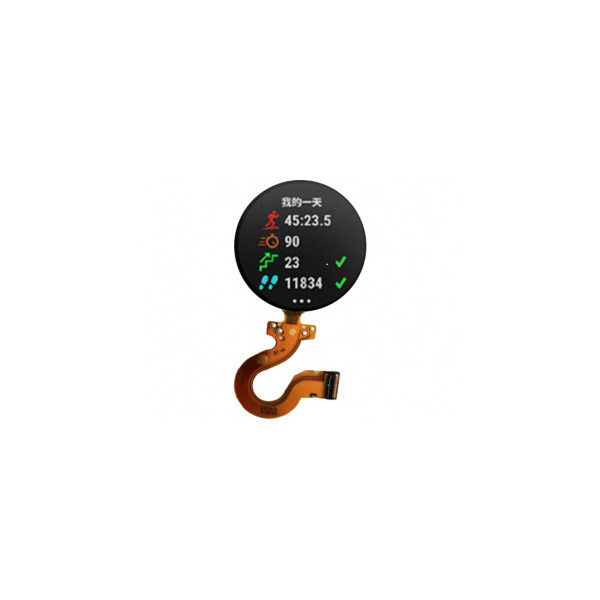

LPM013M461B 1.29 inch 260*260 30 pins LCD Screen lcd panel
LPM013M461B LCD Panel Product details :
Brand | JDI |
Model P/N | LPM013M461B |
Diagonal Size | 1.29" |
Panel Type | LTPS TFT-LCD, LCM |
Resolution | 260(RGB)×260 201PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 32.76(W)×32.76(H) mm |
Bezel Opening | - |
Outline Dim. | 35.56(H)×36.26(V)×1.01(D)mm |
Treatment | Hard coating (2H) |
Luminance | - |
Contrast Ratio | 20:1 (Typ.) (RF) |
View Direction | - |
Response Time | 3/6 (Typ.)(Tr/Td) |
Viewing Angle | 60/65/65/60 (Typ.)(CR≥2) |
Operating Mode | ECB, Normally Black, Reflective |
Support Color | 64 23%NTSC |
Light Source | No B/L |
Weight | 1.90g (Typ.) |
Designed For | Wearable,Round Display |
Frame Rate | 30Hz |
Touch Panel | Without |
Interface Type | Parallel Data (1ch, 6-bit), 30 pinsConnector |
Power Supply | 3.2/4.5V (Typ.)(VDD1/VDD2) |
Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
LPM013M461B 1.29 inch 260*260 30 pins LCD Screen lcd panel |
LPM013M461B LCD Panel Shipping and Package :
LPM013M461B LCD Panel FAQ :
Q: Can You declare my order of LPM013M461B a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of LPM013M461B ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of LPM013M461B ?
A: Of course!sample order is welcome !
Q: Can I pay my order of LPM013M461B via credit card ?
A: Yes!you can use your credit card through your Paypal account.
