Brand Name: | JDI |
Model Number: | LPM013M091A |
MOQ: | 1 pcs |
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Payment Terms: | T/T, Western Union |

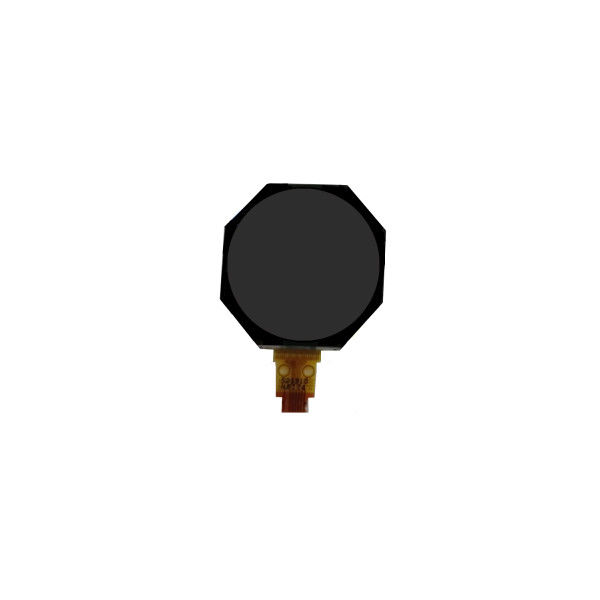

HOT SELL 1.34 inch LPM013M091A 320*300 262K LCD Screen
LPM013M091A LCD Panel Product details :
Brand | JDI |
Model P/N | LPM013M091A |
Diagonal Size | 1.34" |
Panel Type | LTPS TFT-LCD, LCM |
Resolution | 320(RGB)×300 238PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 34.08(W)×31.95(H) mm |
Bezel Opening | - |
Outline Size | 37.28(W)×38.18(H)×1.75(D) mm |
Surface | Hard coating (2H) |
Brightness | - |
Contrast Ratio | 20:1 (Typ.) (RF) |
Viewing Angle | 60/65/65/60 (Typ.)(CR≥10) |
Display Mode | ECB, Normally Black, Reflective |
Best View on | - |
Response Time | 3/6 (Typ.)(Tr/Td) |
Display Colors | 262K 23%NTSC |
Lamp Type | 1 pcsWLED, Without Driver |
Frequency | 60Hz |
Touch Screen | Without |
Panel Weight | 2.80g (Typ.) |
Application | Wearable,Round Display |
Signal Interface | MIPI (1 data lane), 23 pinsFPC |
Input Voltage | 1.8/3.1V (Typ.)(VDDI/VCI) |
Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
HOT SELL 1.34 inch LPM013M091A 320*300 262K LCD Screen |
LPM013M091A LCD Panel Shipping and Package :
LPM013M091A LCD Panel FAQ :
Q: Do you accept the LPM013M091A sample order?
A: Yes , sample order is welcome.
Q: How to order if I don’t know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: What is the different between original lcd panel and compatible lcd display?
A: Function is the same , Of course the original lcd’s quality and lifetime better than that compatible lcd .
