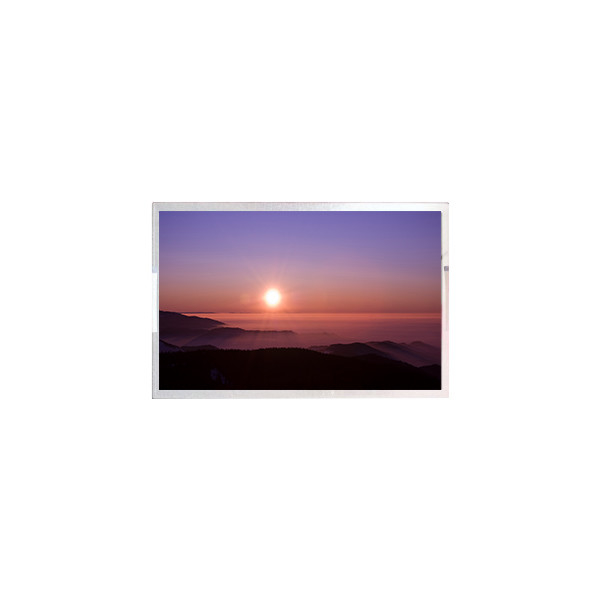

32.0 inch M315HVR01.8 CELL LCD Panel Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | M315HVR01.8 CELL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M315HVR01.8 CELL | Diagonal Size: | 32.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL , FOB | Resolution: | 1920(RGB)×1080, FHD 69PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 698.4(W)×392.85(H) Mm |
| Support Color: | 16.7M | Designed For: | Desktop Monitor/ Gaming |
| Transmissivity: | 4.25% (Typ.)(with Polarizer) | Operating Mode: | VA, Normally Black, Transmissive |
Product Description
32.0 inch M315HVR01.8 CELL LCD Panel Screen
M315HVR01.8 CELL LCD Panel Product details :
| Brand | AUO |
| Model P/N | M315HVR01.8 CELL |
| Diagonal Size | 32.0" |
| Panel Type | a-Si TFT-LCD, CELL , FOB |
| Resolution | 1920(RGB)×1080, FHD 69PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 698.4(W)×392.85(H) mm |
| Bezel Opening | - |
| Outline Dim. | 708.94(W)×405.73(H) ×1.13(D) mm |
| Treatment | Antiglare (Haze 40%), Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 3000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 20 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | VA, Normally Black, Transmissive |
| Glass Depth | 0.40+0.40 mm |
| Transmissivity | 4.25% (Typ.)(with Polarizer) |
| Support Color | 16.7M |
| Light Source | No B/L |
| Weight | 766g (Typ.) |
| Designed For | Desktop Monitor/ Gaming |
| Frame Rate | 100Hz |
| Touch Panel | Without |
| Driver IC | COF Built-in 6 source chips |
| Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Power Supply | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
M315HVR01.8 CELL LCD Display About Us :
Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.
Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.
Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.
M315HVR01.8 CELL LCD Display Product Details :
Condition:
Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.
Order Guidance:
If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.
Product Authenticity:
The LCD screens are original and are thoroughly tested before being sent to you.
M315HVR01.8 CELL LCD Display Friendly Reminder :
- Installation Guide:
- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.
- Professional Installation Recommended:
- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.
- Disassembly Knowledge:
- Make sure you understand the disassembly procedure before making a purchase.
- Return Policy:
- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.
M315HVR01.8 CELL LCD Panel Shipping and Package :
M315HVR01.8 CELL LCD Panel FAQ :
Q: How do you ship my goods M315HVR01.8 CELL ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of M315HVR01.8 CELL ?
A: 90days warranty .
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of LCD panel M315HVR01.8 CELL at a very low value ?
A: Yes , we can . pls inform us before shipping .
