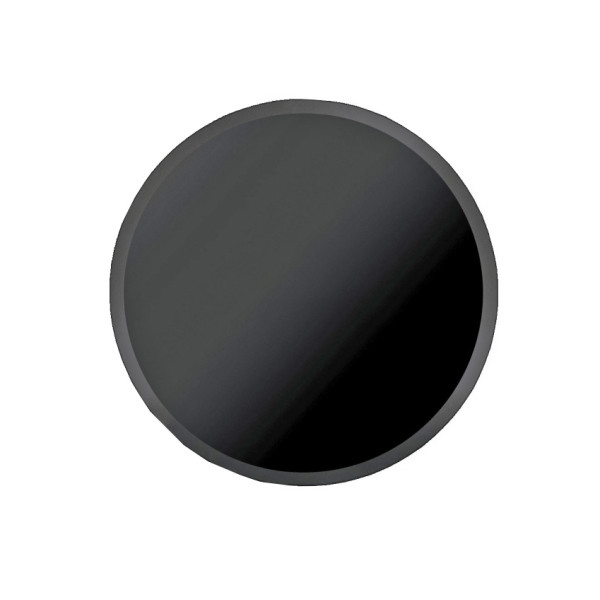

480*480 COM31H3P76ULC 3.1 inch LCD screen for Handheld
Product Details:
| Place of Origin: | China |
| Brand Name: | Ortustech |
| Model Number: | COM31H3P76ULC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | COM31H3P76ULC | Diagonal Size: | 3.1" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 480(RGB)×480 155PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 78.62(W)×78.62(H) Mm |
| Touch Panel: | Without | Designed For: | Handheld & PDA、Round Display |
Product Description
480*480 COM31H3P76ULC 3.1 inch LCD screen for Handheld
COM31H3P76ULC LCD Panel Product details :
| Brand | Ortustech |
| Model P/N | COM31H3P76ULC |
| Diagonal Size | 3.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 480(RGB)×480 155PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 78.62(W)×78.62(H) mm |
| Bezel Opening | - |
| Outline Size | 88.83(W)×91.43(H) mm |
| Surface | Hard coating |
| Brightness | 600 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Display Mode | VA, Normally Black, Transflective |
| Best View on | Symmetry |
| Response Time | 50 (Max.)(Tr+Td) |
| Display Colors | 16.7M 50%NTSC |
| Lamp Type | 7S1PWLED, 50K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 50.0g (Typ.) |
| Application | Handheld & PDA,Round Display |
| Signal Interface | Parallel RGB (1 ch, 8-bit), 50 pinsFPC |
| Input Voltage | 3.3/3.3V (Typ.)(VDD/IOVDD) |
| Environment | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C |
| 480*480 COM31H3P76ULC 3.1 inch LCD screen for Handheld | |
COM31H3P76ULC LCD Display About Us :
Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.
Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.
Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.
COM31H3P76ULC LCD Display Product Details :
Condition:
Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.
Order Guidance:
If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.
Product Authenticity:
The LCD screens are original and are thoroughly tested before being sent to you.
COM31H3P76ULC LCD Display Friendly Reminder :
- Installation Guide:
- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.
- Professional Installation Recommended:
- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.
- Disassembly Knowledge:
- Make sure you understand the disassembly procedure before making a purchase.
- Return Policy:
- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.
COM31H3P76ULC LCD Panel Shipping and Package :
COM31H3P76ULC LCD Panel FAQ :
Q: How long will I receive my goods COM31H3P76ULC ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of COM31H3P76ULC ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of COM31H3P76ULC to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
