LA050WQ2-SD01 480*240 5.0 inch LCD screen for Automotive Display

Brand Name:	LG Display
Model Number:	LA050WQ2-SD01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LA050WQ2-SD01

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

480(RGB)×240, WQVGA 108PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

108(W)×64.8(H) Mm

Frame Rate:

Designed For:

Automotive Display

Supply Ability:

100000 Unit/Units per Month

Product Description

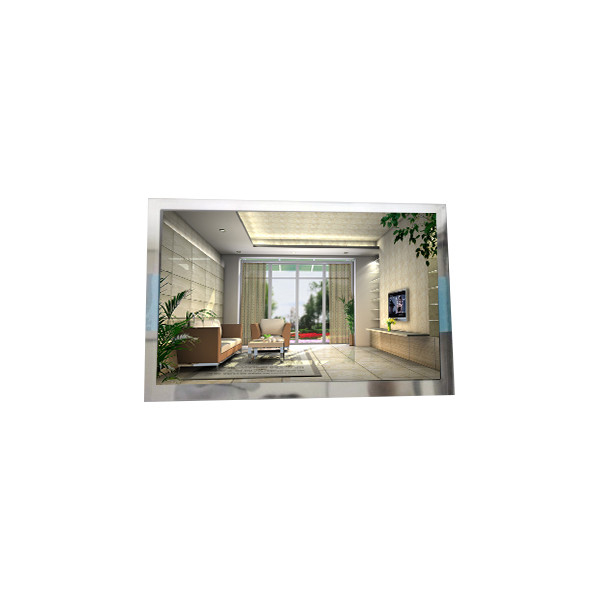

LA050WQ2-SD01 480*240 5.0 inch LCD screen for Automotive Display

LA050WQ2-SD01 LCD Panel Product details :

Brand	LG Display
Model P/N	LA050WQ2-SD01
Diagonal Size	5.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	480(RGB)×240, WQVGA 108PPI
Pixel Format	RGB Vertical Stripe
Active Area	108(W)×64.8(H) mm
Bezel Opening	114.4(W)×67.2(H) mm
Outline Dim.	124.78(W)×80(H)×11.41(D) mm
Luminance	500 cd/m² (Typ.)
View Direction	Symmetry
Viewing Angle	89/89/89/89 (Min.)(CR≥10)
Support Color	262K 68% NTSC
Weight	140/145g (Typ./Max.)
Frame Rate	60Hz
Treatment	-
Contrast Ratio	800:1 (Min.) (TM)
Response Time	30 (Typ.)(Tr+Td)
Operating Mode	IPS, Normally Black, Transmissive
Light Source	WLED [4S2P] , 10K hours , W/O Driver
Designed For	Automotive Display
Touch Panel	4-wire Resistive Touch
Interface Type	Parallel RGB (1 ch, 6-bit) + SPI50 pins FPC
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -40 ~ 85 °C; Storage Temperature: -40 ~ 90 °C; Vibration Level: 10.0G (98 m/s²)
LA050WQ2-SD01 480*240 5.0 inch LCD screen for Automotive Display

LA050WQ2-SD01 LCD Display About Us :

Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.

Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.

Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.

LA050WQ2-SD01 LCD Display Product Details :

Condition:

Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.

Order Guidance:

If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.

Product Authenticity:

The LCD screens are original and are thoroughly tested before being sent to you.

LA050WQ2-SD01 LCD Display Friendly Reminder :

- Installation Guide:

- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.

- Professional Installation Recommended:

- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.

- Disassembly Knowledge:

- Make sure you understand the disassembly procedure before making a purchase.

- Return Policy:

- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.

LA050WQ2-SD01 LCD Panel Shipping and Package :

LA050WQ2-SD01 480*240 5.0 inch LCD screen for Automotive Display 0

LA050WQ2-SD01 LCD Panel FAQ :

Q: Why big order delivery time are long?

A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!

Q:Can you declared low value for my order when shipping?

A:Yes, We can do it for you if you need.

Q: What happen if the lcd panel LA050WQ2-SD01 I received can't work ?

A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.

Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
