Stretched Bar LCD

1600*320 9.0 inch TM090XYHP02 LCD SCREEN FOR Automotive

All Category

Floor Standing Digital Signage

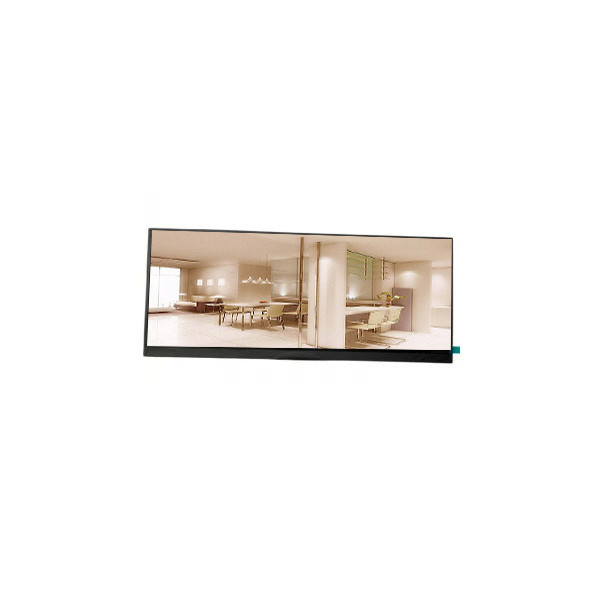

1600*320 9.0 inch TM090XYHP02 LCD SCREEN FOR Automotive

Brand Name:	TIANMA
Model Number:	TM090XYHP02
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TM090XYHP02

Diagonal Size:

9.0" (Native Bar)

Panel Type:

A-Si TFT-LCD, CELL, Full Cell

Resolution:

1600×320(RGB) 180PPI

Pixel Format:

RGB Horizontal Stripe

Active Area:

224.96(W)×44.9(H) Mm

Touchscreen:

Without

Application:

Stretched Bar LCD、Automotive Display

Supply Ability:

100000 Unit/Units per Month

Product Description

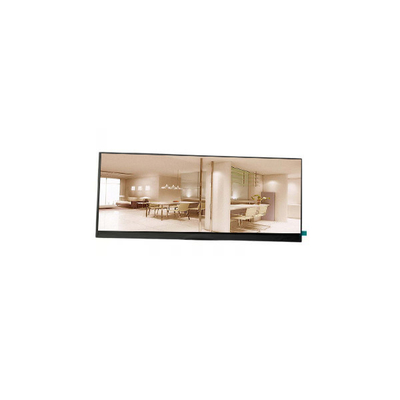

1600*320 9.0 inch TM090XYHP02 LCD SCREEN FOR Automotive

TM090XYHP02 LCD Panel Product details :

Brand	TIANMA
Model P/N	TM090XYHP02
Diagonal Size	9.0" (Native bar)
Panel Type	a-Si TFT-LCD, CELL, Full Cell
Resolution	1600×320(RGB) 180PPI
Pixel Format	RGB Horizontal Stripe
Active Area	224.96(W)×44.9(H) mm
Bezel Opening	-
Outline Dim.	230.059(H)×52.9(V)×1(D) mm
Treatment	-
Luminance	0 cd/m²
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	30 (Typ.)(Tr+Td)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Operating Mode	SFT, Normally Black, Transmissive
Plate Thickness	0.50+0.50 mm
Transmittance	5.1% (Typ.)
Support Color	16.7M 53%NTSC
Light Source	No B/L
Weight	TBD
Designed For	Stretched Bar LCD,Automotive Display
Frame Rate	-
Touch Panel	Without
D-IC Detail	COG Suggest HX8240-A-LT + HX8678-C01-LT*2
Environment	Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -40 ~ 90 °C
1600*320 9.0 inch TM090XYHP02 LCD SCREEN FOR Automotive

TM090XYHP02 LCD Panel Shipment :

· We're not responsible for any accidents delays or other issues that are the resposibility of the shipping service.But we will help you to track the package until you get.

· Please make sure to double check your address before completing your payment.

· An email will be sent as package is process for shipment .We will provide tracking number for you to check the package online.

· Customers are responsible for customs taxes and duties where applicable.

· Any import charges or fees are the buyer's responsibility. If the package can't be delivered because of the buyers reason(including refusing to sign), buyer should afford all the extra cost!

TM090XYHP02 LCD Panel Shipping and Package :

1600*320 9.0 inch TM090XYHP02 LCD SCREEN FOR Automotive 0

TM090XYHP02 LCD Panel Shipment Information :

Shipment Policies

Responsibility for Delays and Issues: While we are committed to helping you track your package, please note that we are not responsible for any accidents, delays, or other issues that are the responsibility of the shipping service. We will, however, assist you in tracking your package until it reaches you.

Address Verification: It is crucial to double-check your shipping address before completing your payment. Ensuring that the address is accurate helps prevent delivery issues and delays.

Shipping Notification: Once your package is processed for shipment, you will receive an email notification. This email will include the tracking number, which you can use to monitor your package's status online.

Customs Taxes and Duties: Customers are responsible for any customs taxes and duties applicable in their country. Please be aware of your local regulations regarding import charges to avoid unexpected fees.

Import Charges: Any additional import charges or fees imposed by your country are the buyer's responsibility. If a package cannot be delivered due to reasons attributable to the buyer (such as refusal to sign for the package), the buyer will be responsible for any additional costs incurred.

TM090XYHP02 LCD Panel Return and Warranty Information :

Return Policy

Inspection and Exchange: All goods undergo two inspections before shipment to guarantee quality. If you are not satisfied with your purchase, you may exchange the item within one week. To initiate an exchange, please contact us within 24 hours of receiving your purchase.

Condition of Return Items: Items must be returned in their original condition, including the box and all accessories. Items showing signs of man-made defects, such as breakage or scratches, are not eligible for return or exchange.

Return Shipping: For returning any items, please use EMS (Express Mail Service) or your local postal service to send the item back to us.

Warranty Policy

Warranty Duration: All items come with a six-month warranty, covering any issues not caused by human error or damage. If your item has a defect not caused by man-made problems, we will replace it for you free of charge.

Best After-Sale Service: We pride ourselves on providing excellent after-sale service. Should any problems arise, we are dedicated to resolving them to ensure customer satisfaction.

TM090XYHP02 LCD Panel FAQ :

Q: How can I trace my order of TM090XYHP02 ?

A: we will give you tracking number then you can trace your order from website.

Q: How to make payment of TM090XYHP02 ?

A: We accept T/T , Paypal , western union .

Q: Do you accept sample orders of TM090XYHP02 ?

A: Of course!sample order is welcome !

Q: Can you give me a discount if I need a large quantity of TM090XYHP02 ?

A: Of course!If you make a large order, we will give you a discount.
