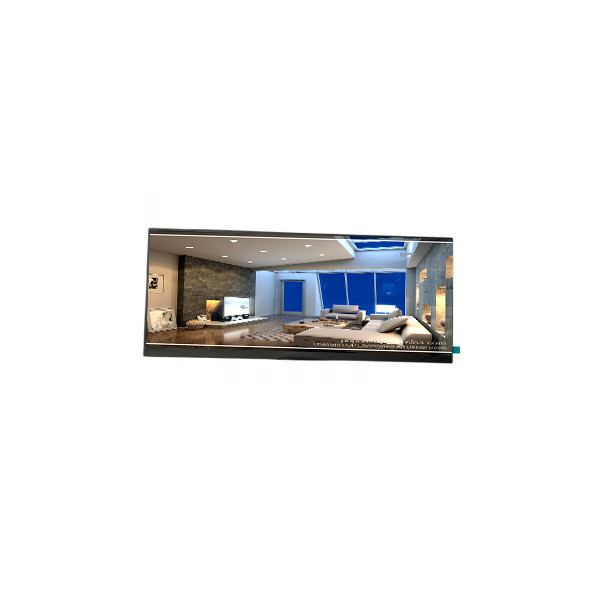

SG3763S01-1 37.6 inch 1920*540 16.7M LCD module screen
Product Details:
| Place of Origin: | China |
| Brand Name: | CSOT |
| Model Number: | SG3763S01-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | SG3763S01-1 | Diagonal Size: | 37.6" (Native Bar) |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL | Resolution: | 1920(RGB)×540 53PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 919.296(W)×258.55(H) Mm |
| Touchscreen: | Without | Application: | Digital Signage、Stretched Bar LCD |
Product Description
SG3763S01-1 37.6 inch 1920*540 16.7M LCD module screen
SG3763S01-1 LCD Panel Product details :
| Brand | CSOT |
| Model P/N | SG3763S01-1 |
| Diagonal Size | 37.6" (Native bar) |
| Panel Type | a-Si TFT-LCD, CELL |
| Resolution | 1920(RGB)×540 53PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 919.296(W)×258.55(H) mm |
| Bezel Opening | - |
| Outline Size | 932.296(W)×272.552(H) mm |
| Surface | Antiglare (Haze 2%) |
| Brightness | 0 cd/m² |
| Contrast Ratio | 3000:1 (Min.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | HVA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 10 (Typ.)(G to G) |
| Glass Depth | 0.50+0.50 mm |
| Transmissivity | 6.0% (Typ.) |
| Display Colors | 16.7M 72%NTSC |
| Lamp Type | No B/L |
| Frequency | 60Hz |
| Touch Screen | Without |
| Driver IC | COF Built-in 6 source + 3 gate chips |
| Panel Weight | - |
| Application | Digital Signage,Stretched Bar LCD |
| Input Voltage | 12V (Typ.) |
| Environment | Operating Temp.: -10 ~ 70 °C ;Storage Temp.: -20 ~ 80 °C |
| SG3763S01-1 37.6 inch 1920*540 16.7M LCD module screen | |
SG3763S01-1 LCD Panel Shipment :
· We're not responsible for any accidents delays or other issues that are the resposibility of the shipping service.But we will help you to track the package until you get.
· Please make sure to double check your address before completing your payment.
· An email will be sent as package is process for shipment .We will provide tracking number for you to check the package online.
· Customers are responsible for customs taxes and duties where applicable.
· Any import charges or fees are the buyer's responsibility. If the package can't be delivered because of the buyers reason(including refusing to sign), buyer should afford all the extra cost!
SG3763S01-1 LCD Panel Shipping and Package :
SG3763S01-1 LCD Panel Shipment Information :
Shipment Policies
Responsibility for Delays and Issues: While we are committed to helping you track your package, please note that we are not responsible for any accidents, delays, or other issues that are the responsibility of the shipping service. We will, however, assist you in tracking your package until it reaches you.
Address Verification: It is crucial to double-check your shipping address before completing your payment. Ensuring that the address is accurate helps prevent delivery issues and delays.
Shipping Notification: Once your package is processed for shipment, you will receive an email notification. This email will include the tracking number, which you can use to monitor your package's status online.
Customs Taxes and Duties: Customers are responsible for any customs taxes and duties applicable in their country. Please be aware of your local regulations regarding import charges to avoid unexpected fees.
Import Charges: Any additional import charges or fees imposed by your country are the buyer's responsibility. If a package cannot be delivered due to reasons attributable to the buyer (such as refusal to sign for the package), the buyer will be responsible for any additional costs incurred.
SG3763S01-1 LCD Panel Return and Warranty Information :
Return Policy
Inspection and Exchange: All goods undergo two inspections before shipment to guarantee quality. If you are not satisfied with your purchase, you may exchange the item within one week. To initiate an exchange, please contact us within 24 hours of receiving your purchase.
Condition of Return Items: Items must be returned in their original condition, including the box and all accessories. Items showing signs of man-made defects, such as breakage or scratches, are not eligible for return or exchange.
Return Shipping: For returning any items, please use EMS (Express Mail Service) or your local postal service to send the item back to us.
Warranty Policy
Warranty Duration: All items come with a six-month warranty, covering any issues not caused by human error or damage. If your item has a defect not caused by man-made problems, we will replace it for you free of charge.
Best After-Sale Service: We pride ourselves on providing excellent after-sale service. Should any problems arise, we are dedicated to resolving them to ensure customer satisfaction.
SG3763S01-1 LCD Panel FAQ :
Q: How long will I receive my goods SG3763S01-1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q:Can You declare my order of SG3763S01-1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q:Can I pay my order of SG3763S01-1 via credit card ?
A:Yes!you can use your credit card through your Paypal account.
