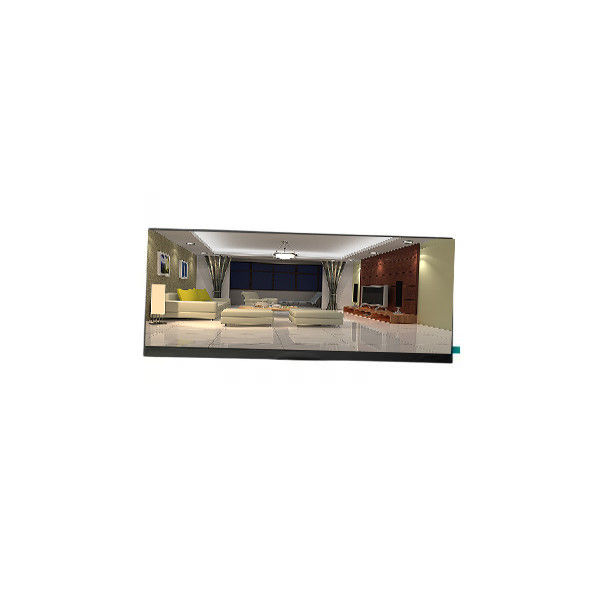

P566KVN01.0 CELL 3840*430 56.6 inch lcd screen Parts

All Category

Floor Standing Digital Signage

P566KVN01.0 CELL 3840*430 56.6 inch lcd screen Parts

Brand Name:	AUO
Model Number:	P566KVN01.0 CELL
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

P566KVN01.0 CELL

Diagonal Size:

56.6" (1/5 Cut Of 65")

Panel Type:

A-Si TFT-LCD, CELL, FOB

Resolution:

3840(RGB)×430 68PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

1428.48(W)×159.96(H) Mm

Frame Rate:

Application:

Digital Signage、Stretched Bar LCD

Supply Ability:

100000 Unit/Units per Month

Product Description

P566KVN01.0 CELL 3840*430 56.6 inch lcd screen Parts

P566KVN01.0 CELL LCD Panel Product details :

Brand	AUO
Model P/N	P566KVN01.0 CELL
Diagonal Size	56.6" (1/5 cut of 65")
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	3840(RGB)×430 68PPI
Pixel Format	RGB Vertical Stripe
Active Area	1428.48(W)×159.96(H) mm
Bezel Opening	-
Outline Size	1438.48(W)×224.97(H)×1.4(D) mm
Brightness	0 cd/m²
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Best View on	Symmetry
Glass Depth	0.50+0.50 mm
Display Colors	1.07B 73%DCI-P3
Frequency	60Hz
Weight	1.30Kgs (Typ.)
Surface	Antiglare (Haze 2%), Hard coating (3H)
Contrast Ratio	4000:1 (Typ.) (TM)
Display Mode	AMVA3, Normally Black, Transmissive
Response Time	8 (Typ.)(G to G)
Transmissivity	4.9% (Typ.)(with Polarizer)
Lamp Type	No B/L
Touch Screen	Without
Application	Digital Signage,Stretched Bar LCD
Driver IC	COFBuilt-in 12 source chips
Signal Interface	V-by-One 8 lane, 51 pinsConnector
Input Voltage	12.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
P566KVN01.0 CELL 3840*430 56.6 inch lcd screen Parts

P566KVN01.0 CELL LCD Panel Shipment :

· We're not responsible for any accidents delays or other issues that are the resposibility of the shipping service.But we will help you to track the package until you get.

· Please make sure to double check your address before completing your payment.

· An email will be sent as package is process for shipment .We will provide tracking number for you to check the package online.

· Customers are responsible for customs taxes and duties where applicable.

· Any import charges or fees are the buyer's responsibility. If the package can't be delivered because of the buyers reason(including refusing to sign), buyer should afford all the extra cost!

P566KVN01.0 CELL LCD Panel Shipping and Package :

P566KVN01.0 CELL 3840*430 56.6 inch lcd screen Parts 0

P566KVN01.0 CELL LCD Panel Shipment Information :

Shipment Policies

Responsibility for Delays and Issues: While we are committed to helping you track your package, please note that we are not responsible for any accidents, delays, or other issues that are the responsibility of the shipping service. We will, however, assist you in tracking your package until it reaches you.

Address Verification: It is crucial to double-check your shipping address before completing your payment. Ensuring that the address is accurate helps prevent delivery issues and delays.

Shipping Notification: Once your package is processed for shipment, you will receive an email notification. This email will include the tracking number, which you can use to monitor your package's status online.

Customs Taxes and Duties: Customers are responsible for any customs taxes and duties applicable in their country. Please be aware of your local regulations regarding import charges to avoid unexpected fees.

Import Charges: Any additional import charges or fees imposed by your country are the buyer's responsibility. If a package cannot be delivered due to reasons attributable to the buyer (such as refusal to sign for the package), the buyer will be responsible for any additional costs incurred.

P566KVN01.0 CELL LCD Panel Return and Warranty Information :

Return Policy

Inspection and Exchange: All goods undergo two inspections before shipment to guarantee quality. If you are not satisfied with your purchase, you may exchange the item within one week. To initiate an exchange, please contact us within 24 hours of receiving your purchase.

Condition of Return Items: Items must be returned in their original condition, including the box and all accessories. Items showing signs of man-made defects, such as breakage or scratches, are not eligible for return or exchange.

Return Shipping: For returning any items, please use EMS (Express Mail Service) or your local postal service to send the item back to us.

Warranty Policy

Warranty Duration: All items come with a six-month warranty, covering any issues not caused by human error or damage. If your item has a defect not caused by man-made problems, we will replace it for you free of charge.

Best After-Sale Service: We pride ourselves on providing excellent after-sale service. Should any problems arise, we are dedicated to resolving them to ensure customer satisfaction.

P566KVN01.0 CELL LCD Panel FAQ :

Q: What is the different between original lcd panel and compatible lcd display?

A: Function is the same , Of course the original lcd’s quality and lifetime better than that compatible lcd .

Q: Do you accept the P566KVN01.0 CELL sample order?

A: Yes , sample order is welcome.

Q: How to order if I don’t know the lcd panel number ?

A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.

Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
